Features

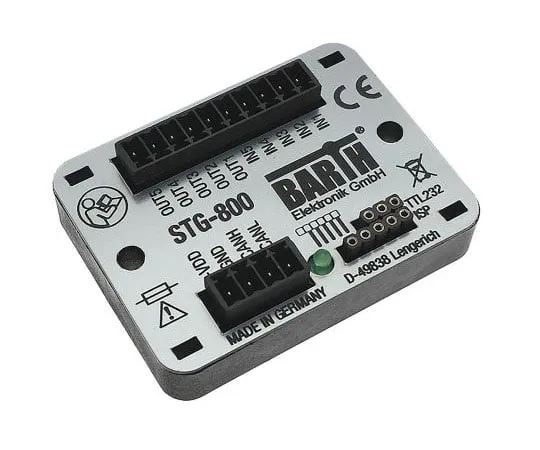

• STG-800 ARM Mini-PLC. Barth professional range of STG-800 CAN Mini-PLC with a powerful 32-bit ARM Cortex core. The STG-800 Mini-PLC features a rugged CAN/CANopen interface with intuitive graphical programming capability. These Mini-PLC ‘s provide hardware-oriented microcontroller programming at lowest current consumption in a small form factor. The 32-bit ARM Cortex core provides two high-speed events, pulse and frequency counter inputs and one 16-bit PWM output combined with a precise internal voltage reference for the 12-bit analogue inputs. The automotive-qualified CAN2.0A/B/CANopen interface is able to operate in noisy environments and allows connection of various network components to the Mini-PLC. Feature and Benefits. Tiny and super-flat CAN Logic Controller High-Performance 32 Bit ARM Cortex 3 analogue Inputs 0 to 30 VDC, 12 bit ADC Event Counter Input 25 kHz Pulse and Frequency Counter Input 40μs 4 Solid-State Power Outputs up to 1.5 A 1 Power PWM Output 16 Bit 1 Hz to 25 kHz CAN 2.0A/B and SAE J1939 Interface CANopen Interface (Open Source) Comprehensive Fail Safe Functions TTL-232 3.3V Interface Intuitive graphical Programming Capability Open Source Programming Option Wide Operating Voltage Range 7 to 32 VDC Wide Operating Temp. Range -40 to +70°C Vibration resistant and rugged Sealing. Product Application Information. miCon-L Software Suite - http://micon-l.de/downloads.html
