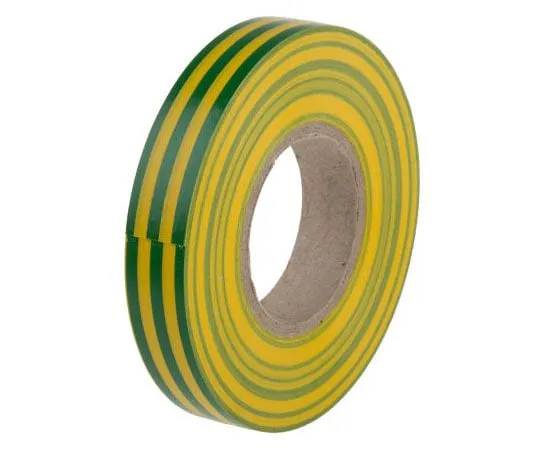

63-4686-13 RS PRO Green, Yellow Electrical Tape, 12mm x 20m 134-7325
Product Description
Product Model: 63-4686-13Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4686-13
Product Brand: RS PRO
Features
- For more details, refer to the technical datasheet. RS Pro PVC Insulating Tapes. Electrical insulation tape from RS Pro is available in a range of colours, widths and lengths all suitable for both commercial and residential ***. The high 8000 V breakdown capacity provides excellent electrical insulation for any application. The flame retardant RS Pro lead free, PVC insulating tape is a professional quality solution to many of your needs around the home or on the jobsite. The water resistant electrical tape has been manufactured to comply with BS EN 60454-3-1/Type 2 as well as being RoHS compliant. A variety of colours to provide colour coding on jobs allows for safe working, and ****s to ensure that over time, any work can be clearly identified to avoid injuries as well as electrical faults. The UV resistant 0.13mm PVC tape is also water resistant for long lasting reliable ***. Features and Benefits. Flame retardant and self-extinguishing for safe working High breakdown voltage capacity UV resistant Water resistant RoHS compliant Available in range of colours. Versions Available. Black: 12mm 20m ; 134-7321 134-7321 19mm 33m ; 134-7319 134-7319 38 mm 20 m ; 134-7329 134-7329 Blue: 12mm 20m ; 134-7330 134-7330 19mm 33m ; 134-7324 134-7324 Green: 12mm 20m ; 134-7334 134-7334 19mm 33m ; 134-7331 134-7331
Spec
- Quantity:1piece
- Colour : Green, Yellow
- Backing Material : PVC
- Width : 12mm
- Length : 20m
- Thickness : 0.13mm
- Minimum Operating Temperature : -5°C
- Maximum Operating Temperature : +70°C
- Adhesion Strength : 2.4 N/cm
- Elongation at Break : 180%
- Tensile Strength : 26N/cm
- Model Number : 237401
- CODE No.:134-7325
