Features

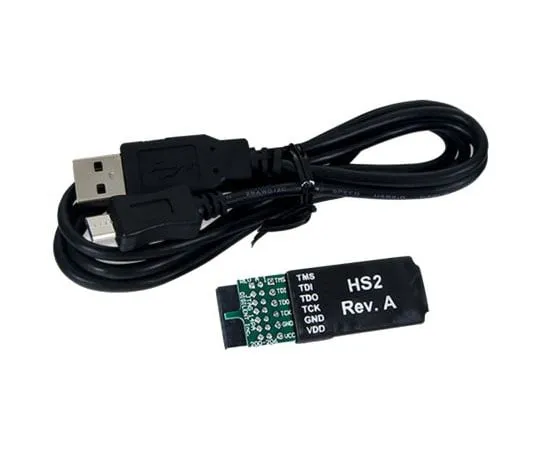

• Xilinx JTAG 2 x 7-pin 2mm connector adapter, USB cable. This cable is not needed for Digilent Xilinx FPGA boards as they have this functionality built-in. JTAG-HS2 FPGA Programming Cable. The JTAG - HS 2 programming cable allows high-speed programming of Xilinx FPGA devices from a host PC. Features. Compatible with all Xilinx tools Compatible with IEEE 1149.7-2009 Class T0 - Class T4 (includes 2-Wire JTAG) On-board ADP123AUJZ 300mA voltage regulator Separate Vref drives JTAG/SPI signal voltages Vref can be any voltage between +1.8V and +5V USB 2.0 HS port drives JTAG/SPI bus at up to 30Mbit/sec JTAG/SPI frequency settable by ***r PC connector: MicroUSB JTAG connector: 0.1in 6-pin SPI programming modes 0/2 up to 30Mbit/sec, modes 1/3 up to 2Mbit/sec Fully supported by Digilent's Adept software and Adept SDK. Supported Target Devices. Xilinx FPGAs Xilinx Zynq-7000 Xilinx CoolRunner™/CoolRunner-II CPLDs Xilinx Platform Flash ISP configuration PROMs Selected third-party SPI PROMs Selected third-party BPI PROMs. Target Devices Not Supported. Xilinx 9500/9500XL CPLDs Xilinx 1700 and 18V00 ISP configuration PROMs Xilinx FPGA eFUSE programming
