Features

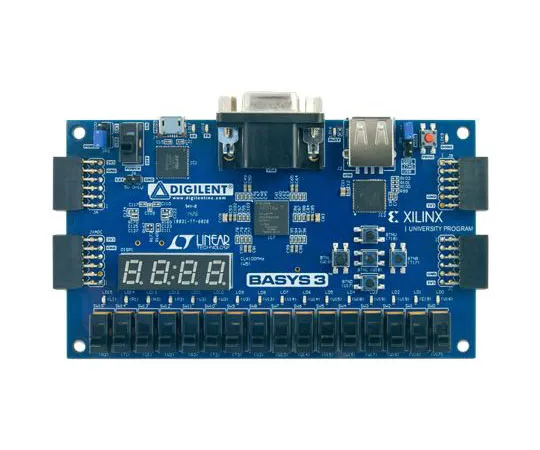

• Basys 3 Artix-7 FPGA Trainer Board. The Basys 3 is an entry-level FPGA development board designed for the Vivado Design Suite, featuring Xilinx Artix-7 architecture. Vivado Design Suite WebPACK edition can be downloaded for free from Xilinx. Expanded features are available through purchase of the Design Edition. Xilinx Artix-7 FPGA (XC7A35T-1CPG236C) 33280 logic cells in 5200 slices (each slice contains 4 x 6-input LUTs and 8 x flip-flops) 1800Kbit Fast Block RAM 5 x Clock Management Tiles, each with a phase-locked loop (PLL) 90 x DSP slices Internal clock speeds exceeding 450MHz On-chip Analogue-to-Digital Converter (XADC) On-board 32Mbit Quad-SPI Serial Flash memory Programmable over JTAG, Quad-SPI or USB USB-UART Bridge via microUSB socket USB-A HID Host socket for mice, keyboards and memory sticks 12-bit VGA display output on DE15 connector FPGA Programming-Done LED 16 x User LEDs 4-digit 7-segment LED display 5 x User Pushbuttons 16 x User Slide-Switches 3 x Standard Pmod 2 x 6-pin connectors Dual purpose XADC signal / Standard Pmod 2 x 6-pin connector Powered from either USB socket or external +5V header
