Spec

• Manufacturer: Sanwa Electric Meter (sanwa)
• Model Number: CP8D
• Specifications: Body
• DC Voltage: 0.25/2.5/10/50/250/500 V (4 kΩ/V)
• AC voltage: 10/50/250/500 V (4 kΩ/V)
• DC Current: 0.25 m/25 m/500 mA
• Resistance: 2 k/20 k/1 MΩ
• Tolerance: DC Voltage: within 3% ± AC Voltage: within 4% ± DC Current: within 3% ± Resistance: within 3% ± of scale length
• Load Current: 0 to 74 mA/7.4 mA/150 μA
• Battery Check: 0.9 to 1.5 V
• LF Power: -20 to 36 dB
• Frequency response: 10 3% VAC range 30 Hz to 100 kHz, 50 VAC range 30 Hz to 20 kHz
• power supply: AA size battery x 1 piece (Included)
• Internal F***: Φ 5.2 × 20 mm (250 V/0.5 A)
• Size: 82 (W) x 23 (D) x 119 (H) mm
• Weight cookies: 140 g
• Mirror scale adopted for scale plate
• Equipped with basic measurement functions for DC voltage, AC voltage, DC current, and resistance.
• With Continuity Check Buzzer

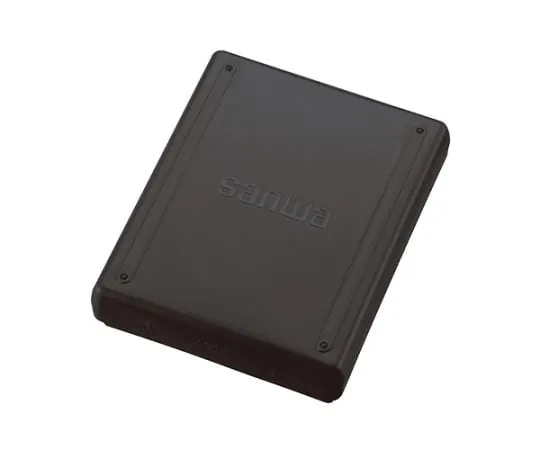

• Sturdy hard case with excellent storage and portability
• Battery Check Range Installed
• Circuit protection by f***s and diodes
• The test lead is a plug-type detachable device.
• Uses test lead pin tip (18 mm) considering measurement with waterproof outlet
• Inside the hard case, there is a dedicated storage for the test pin cap.
• Test Lead, With Case
• Thin
