Features

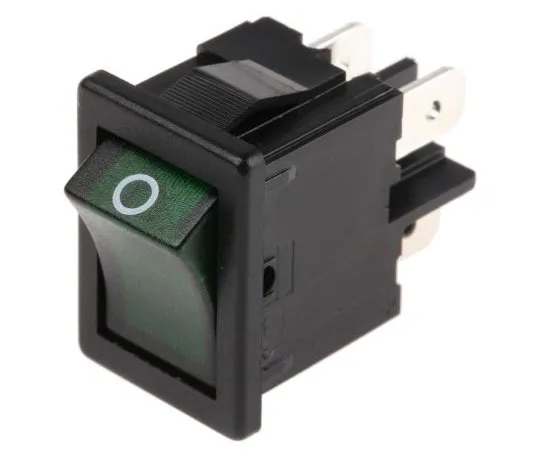

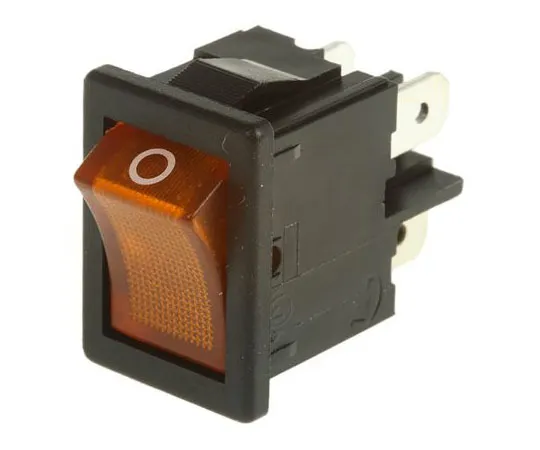

• UL; CSA; ENEC. See stock number ; 133-6287 133-6287 for a suitable splashproof PVC cover. The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings. Marquardt 1855 Series Rocker Switches. Marquardt 1855 series double pole rocker switches. The 1855 rocker switches are suitable for *** in Class II appliances and feature a fully illuminated (red, amber or green) 230Vac neon actuator. The 1855 rocker switches have silver contacts with a DPST (on-off) switching format, a contact resistance ;100mΩ and an insulation resistance of >100MΩ. A transparent PVC cover is available to protect the 1855 series of rocker switches from dust and water ingression and to give the rocker switch actuator an IP64 rating. Illuminated actuator with white power off symbol 'O' High inrush current (capacitive) up to 50A Contact distance ≥3mm Operating force ≤5N UL 94 V-2 flammability rated
