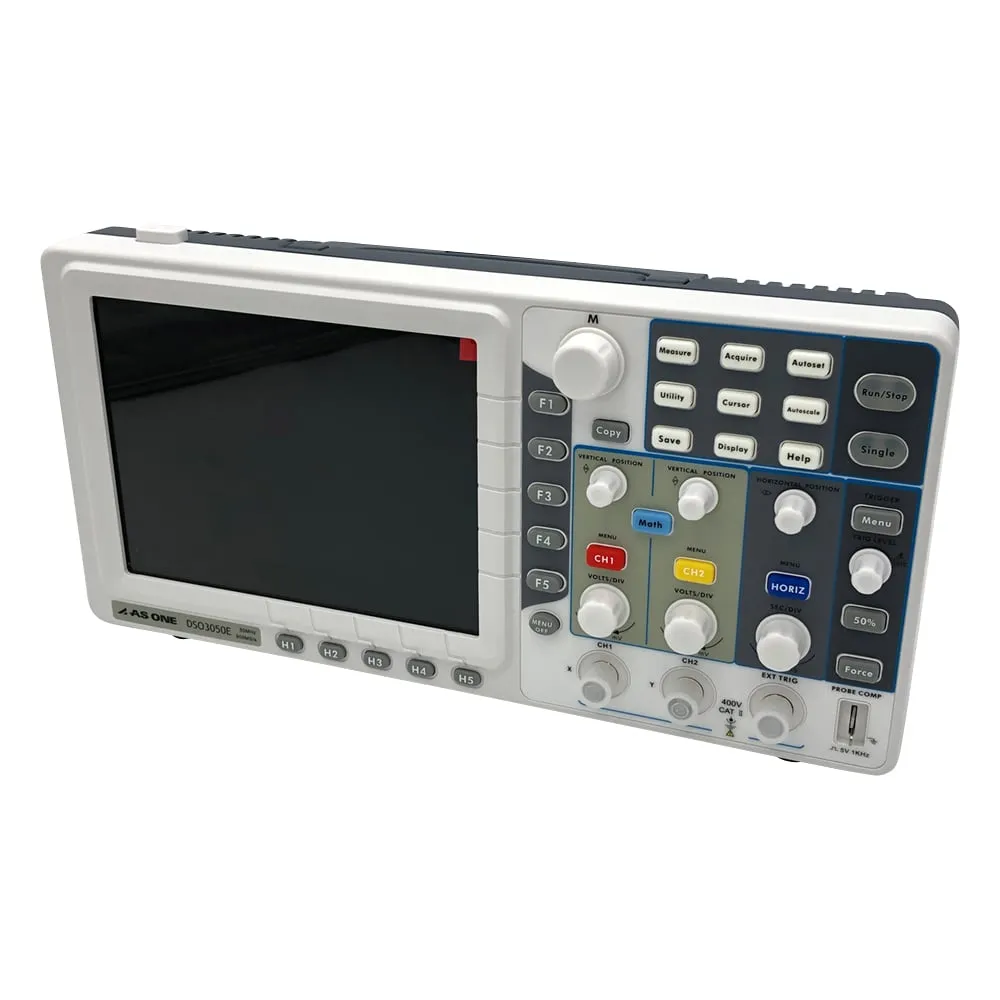

3-6700-01 Digital Storage Oscilloscope 50MHz DSO3050E
model:
3-6700-01
category:
toner
Product Description
Product Model: 3-6700-01 Features Plenty of automatic m […]
Contact Us
Product Details
Product Model: 3-6700-01
Features
- Plenty of automatic measurement functions.
- 20 kinds of automatic measurement and FFT analysis are possible.
- Space-saving design with depth of 78 mm and weight of 1.5 kg.
- Panels and menus with an 8-inch LCD display.
- It has a path fail function and waveform recording/replay function.
Spec
- Model number: DSO3050E
- Frequency band (MHz): 50
- Sample rate (GS/s): 0.5
- Analog, number of channels: 2
- Record length: 10k points
- Rise time: 7 ≦ ns
- Vertical axis resolution: 8 bits
- Vertical axis input sensitivity range: 5mV/div - 5V/div
- DC gain accuracy: +/- 3%
- Input impedance: 1MΩ ±2%, 10pF ±5pF
- Waveform calculation: ＋・-・ x ・÷
- Arithmetic functions: FFT
- Cursor measurement: ⊿V, ⊿T
- Automatic measurement: P-P, Average value, RMS, Frequency, Cycle, Maximum value, Minimum values, Rise time, Fall time, Delay, + Width, - Width, Duty, etc.
- Trigger type: Edge, Pulse width, Video, Slope, etc.
- Trigger mode: Auto, Normal, Single
- Interface: USB, LAN
- Size: 348 x 78 x 170mm
- Weight: 1.5kg
- Power supply: 100VAC 50/60Hz
- *Sample rate is the value of the single channel.
