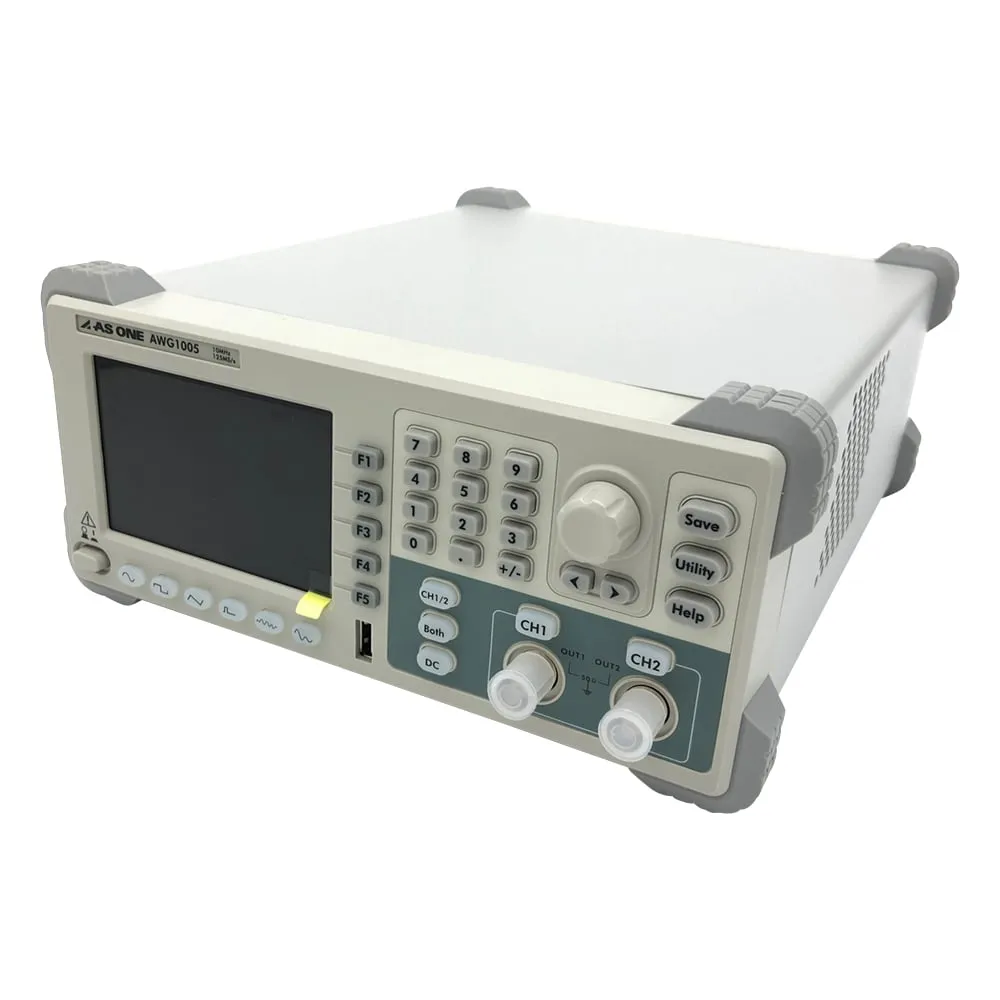

3-6696-01 Function Generator 1μhz - 10mhz AWG1005
model:
3-6696-01
category:
toner
Product Description
Product Model: 3-6696-01 Features Displays related sett […]
Contact Us
Product Details
Product Model: 3-6696-01
Features
- Displays related settings and parameters in text and graphic formats on the 3.95 TFT LCD display.
- It supports 5 basic waveforms and 48 arbitrary waveforms.
- You can store 26 arbitrary waveforms in nonvolatile memory.
Spec
- Model number: AWG1005
- Frequency range (MHz): 1μHz - 10MHz
- Resolution (μHz): 1
- Analog, number of channels: 2
- Output waveform: Sine wave, square wave, pulse wave, ramp wave, noise, ARB (arbitrary wave)
- Sample rate: 125MS/s
- Record length: 8k points
- Vertical axis resolution: 14 bits
- Amplitude (50Ω load): 1mV - 10Vp-p
- Amplitude resolution: 1mVp-p/14bits
- Frequency: Sine wave/1μHz - 25MHz, Square wave, pulse wave/1μHz - 5MHz, Ramp wave/1μHz - 1MHz, Noise/25MHz (-3dB), ARB (arbitrary wave)/1μHz - 10MHz
- Interface: USB
- Size: 235 x 110 x 295mm
- Weight: 3kg
- Power supply: 100VAC 50/60Hz
