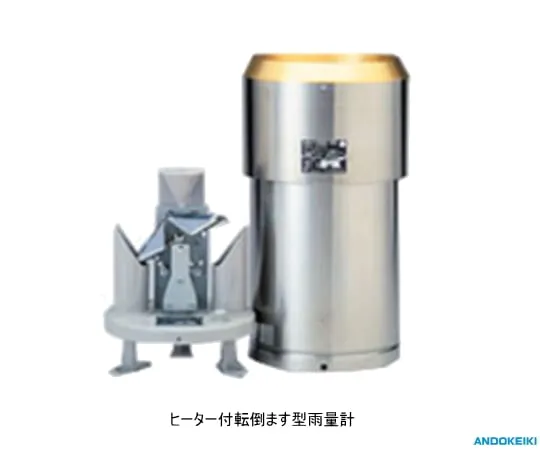

64-5230-18 Overturning Type Rain Gauge with Heater AN-011-H
Product Description
Product Model: 64-5230-18Product Brand: ANDO KEIKI Feat […]
Contact Us
Product Details
Product Model: 64-5230-18
Product Brand: ANDO KEIKI
Features
- Overturning Type with Heater Rain Gauge, Single Item, General Item
- A recorder is required for measurement.
- It is a fall type rain gauge feeling part for interval measurement.
- It falls every certain amount (0.5 mm) of rainfall entering the water receiving port of 200 mm diameter, but the falling operation is detected by the reed switch, and the contact pulse signal is output.
- Stable observation and measurement is possible for a long time.
- Relatively easy to install.
- The body part is made of stainless steel.
- The rain gauge has a heater built in to prevent freezing for cold weather.
- Heater power and grounding are required.
Spec
- AN-011-H (Falling Type Rain Gauge with Heater) Specifications
- Heater: Heater switch is ON at the set temperature of 10 °C or less.
- Upper Heater: 100 VAC, 120 W
- Lower Heater: 100 VAC, 160 W
- Bore Diameter: 200 mm
- (1) Falling rainfall: 0.5 mm
- Sensitive Part: Chrome Plating Finish (For Falling)
- Accuracy of measurement: within ± 0.5 mm for rainfall not exceeding 20 mm and within ± 3% for rainfall exceeding 20 mm.
- Output signal: make-contact output by reed switch (0.11 ~ 0.13 seconds)
- Outer Diameter: Approx. φ 226.6 x H 450 mm
- Mass: about 5.0 kgF***lage Material: Polycarbonate
- Attached cord: 10 m
- Contact Capacity: 3 VA (30 VDC/0.2 A MAX)
- Operating temperature range: 0 ~ 50 °C (Do not freeze)
