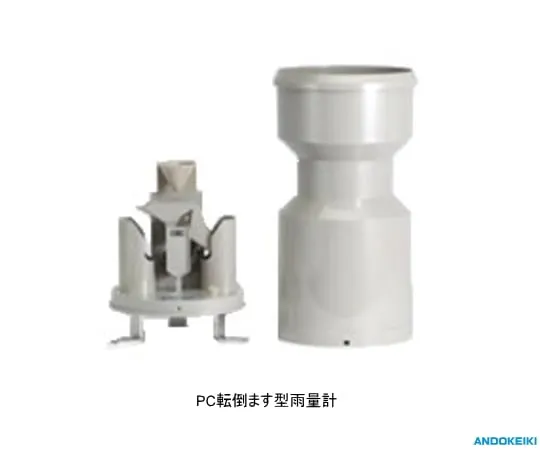

64-5230-16 PC Overturn Type Rain Gauge AN-011
Product Description
Product Model: 64-5230-16Product Brand: ANDO KEIKI Feat […]
Contact Us
Product Details
Product Model: 64-5230-16
Product Brand: ANDO KEIKI
Features
- PC overturning type rain gauge, single item, general item
- A recorder is required for measurement.
- It is a fall type rain gauge feeling part for interval measurement.
- It falls every certain amount (0.5 mm) of rainfall entering the water receiving port of 200 mm diameter, but the falling operation is detected by the reed switch, and the contact pulse signal is output.
- Stable observation and measurement is possible for a long time.
- Relatively easy to install.
- It has a constriction in the center of the body to reduce the effect of wind.
Spec
- AN-011 (PC Overturn Type Rain Gauge) Specifications
- Bore Diameter: 200 mm
- (1) Falling rainfall: 0.5 mm
- Sensitive Part: Chrome Plating Finish (For Falling)
- Accuracy of measurement: within ± 0.5 mm for rainfall not exceeding 20 mm and within ± 3% for rainfall exceeding 20 mm.
- Output signal: make-contact output by reed switch (0.11 ~ 0.13 seconds)
- Outer Diameter: 450 (H) x 216 (φ) mm
- Mass: about 2.4 kg
- Body Material: Polycarbonate
- Attached cord: 10 m
- Contact Capacity: 3 VA (30 VDC/0.2 A MAX)
- Operating temperature range: 1 ~ 50 °C (Do not freeze)
