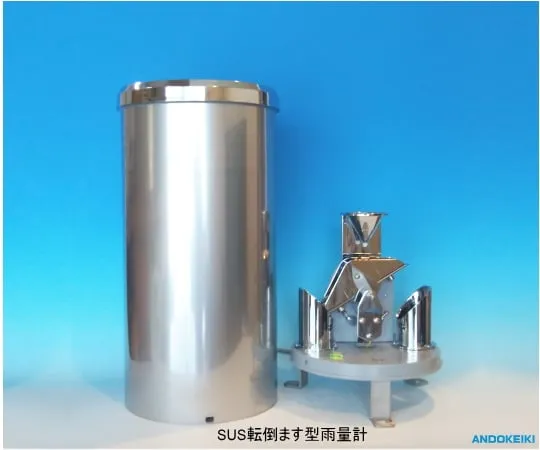

64-5230-14 SUS Overturning Type Rain Gauge AND-R02
Product Description
Product Model: 64-5230-14Product Brand: ANDO KEIKI Feat […]
Contact Us
Product Details
Product Model: 64-5230-14
Product Brand: ANDO KEIKI
Features
- SUS overturning type rain gauge, single item, general item
- A recorder is required for measurement.
- It is a fall type rain gauge feeling part for interval measurement.
- It falls every certain amount (0.5 mm) of rainfall entering the water receiving port of 200 mm diameter, but the falling operation is detected by the reed switch, and the contact pulse signal is output.
- Stable observation and measurement is possible for a long time.
- Relatively easy to install.
- Body: Stainless Steel, Base: Aluminum Alloy, Leg: Metal
Spec
- AND-R02 (SUS Overturn Type Rain Gauge) Specification
- Detection method: Fall
- Water Receiving Part Diameter: Φ 200 mm
- (i) Amount of fallen rainfall: 0.5 mm (15.7 CC);
- Accuracy: within +/- 0.5 mm for rainfall not exceeding 20 mm and within +/- 3% for rainfall not less than 20 mm.
- Output signal: Voltage free make-contact signal 2-contact type
- Contact time: 0.1 ~ 0.15 seconds
- Insulation resistance: 500 VDC 500 MΩ or more
- Voltage: 1000 VAC 1 min
- Outer Cylinder Material: SUS 304
- Base Material: Aluminum Alloy Cast Material
- Coating color: Outer cylinder stainless steel, cap gold varnish, main unit gray (equivalent to Mansell 5GY6/1)
- External Dimensions: Approx. 210 mm x 450 mm (H)
- Weight: approx. 3.4 kg
- Attached cord: about 10 m
