Spec

• 5 -34 RL-H Set Contents: AN-011-H Overturn Type Rain Gauge with Heater (General Product), TR -55 i-P Compact Waterproof Data Logger, TR -50 U2 Data Collector

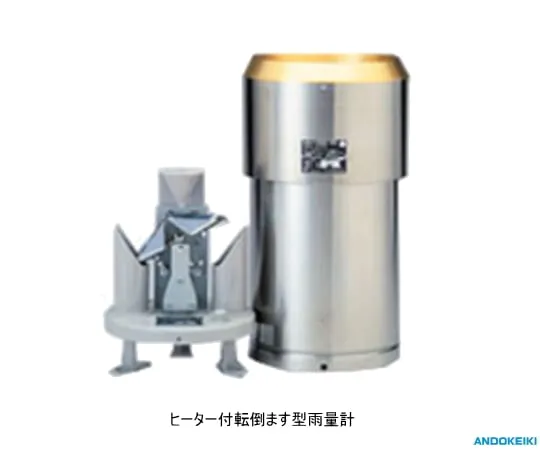

• AN-011-H (Falling Type Rain Gauge with Heater) Specifications
• Heater: Heater switch is ON at the set temperature of 10 °C or less.
• Upper Heater: 100 VAC, 120 W
• Lower Heater: 100 VAC, 160 W
• Bore Diameter: 200 mm
• (1) Falling rainfall: 0.5 mm
• Sensitive Part: Chrome Plating Finish (For Falling)
• Accuracy of measurement: within ± 0.5 mm for rainfall not exceeding 20 mm and within ± 3% for rainfall exceeding 20 mm.
• Output signal: make-contact output by reed switch (0.11 ~ 0.13 seconds)
• Outer Diameter: Approx. φ 226.6 x H 450 mm
• Mass: about 5.0 kg
• Body Material: Polycarbonate
• Attached cord: 10 m
• Contact Capacity: 3 VA (30 VDC/0.2 A MAX)
• Operating temperature range: 0 ~ 50 °C (Do not freeze)
• TR -55 i-P (Compact, Waterproof Data Logger) Specification
• Measurement object: pulse 1 ch
• Measurement Range: Contact, Voltage
• Display: Measured value, battery life warning, etc.
• Recorded Data: 16000
• Recording interval: 1 second to 60 minutes for 15 runs
• Record Mode: Endless/One-Time
• Communication: Optical communication and infrared communication
• Checking method of alarm: main body liquid crystal screen, main body LED
• Power: Lithium battery
• Operating Environment: Temperature: -40 ~ 80 °C
• Size: H: 62 mm x W: 47 mm x D: 19 mm
• Waterproof: IP 64
• Battery life: Approx. 16 months
• Accessories: Input Module (PIC -3150), Lithium Battery LS 14250, Strap, Operation Manual (with warranty) Set
• TR -50 U2 (Data Collector) Specifications
• Communication: USB, optical communication
• power: USB bus power
• Operating environment: Temperature: -10 °C to 60 °C, Humidity: 90% rh or less (non-condensing), Data logger shall not be ***d in wet condition.
• Size: H: 80 mm x W: 56 mm x D: 16.5 mm
• Waterproof: None
• Accessories: USB Mini-B Communication Cable (US -15 C), Software (CD-ROM), Instruction Manual (with warranty) Set
