Spec

• 5 -34 RL Set Contents: AN-011PC Tall Rain Gauge (General Product), TR -55 i-P Compact Waterproof Data Logger, TR -50 U2 Data Collector
• AN-011 (PC Overturn Type Rain Gauge) Specifications
• Bore Diameter: 200 mm
• (1) Falling rainfall: 0.5 mm
• Sensitive Part: Chrome Plating Finish (For Falling)
• Accuracy of measurement: within ± 0.5 mm for rainfall not exceeding 20 mm and within ± 3% for rainfall exceeding 20 mm.
• Output signal: make-contact output by reed switch (0.11 ~ 0.13 seconds)
• Outer Diameter: 450 (H) x 216 (φ) mm
• Mass: about 2.4 kg
• Body Material: Polycarbonate
• Attached cord: 10 m
• Contact Capacity: 3 VA (30 VDC/0.2 A MAX)
• Operating temperature range: 1 ~ 50 °C (Do not freeze)

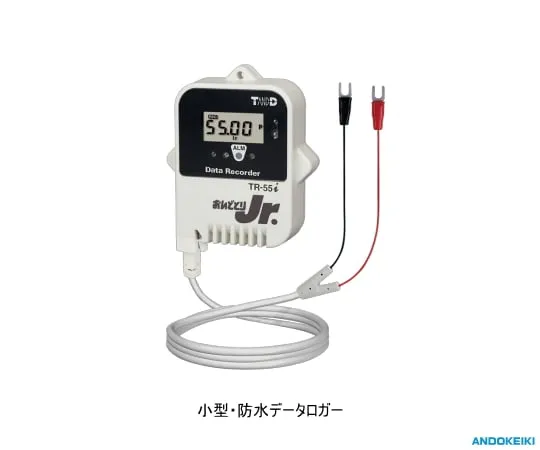

• TR -55 i-P (Compact, Waterproof Data Logger) Specification
• Measurement target: pulse 1 ch measurement range: contact, voltage display: measured value, battery life warning, other recording data: 16000 recording interval: 15 lines 1 second to 60 minutes recording mode: ***less/one-time communication: optical communication, infrared communication alarm confirmation method: main body liquid crystal screen, main body LED power supply: lithium battery
• Operating Environment: Temperature: -40 ~ 80 °C
• Size: H: 62 mm x W: 47 mm x D: 19 mm
• Waterproof: IP 64
• Battery life: Approx. 16 months
• Accessories: Input Module (PIC -3150), Lithium Battery LS 14250, Strap, Operation Manual (with warranty) Set
• TR -50 U2 (Data Collector) Specifications
• Communication: USB, optical communication
• power: USB bus power
• Operating environment: Temperature: -10 °C to 60 °C, Humidity: 90% rh or less (non-condensing), Data logger shall not be ***d in wet condition.
• Size: H: 80 mm x W: 56 mm x D: 16.5 mm
• Waterproof: None
• Accessories: USB Mini-B Communication Cable (US -15 C), Software (CD-ROM), Instruction Manual (with warranty) Set
