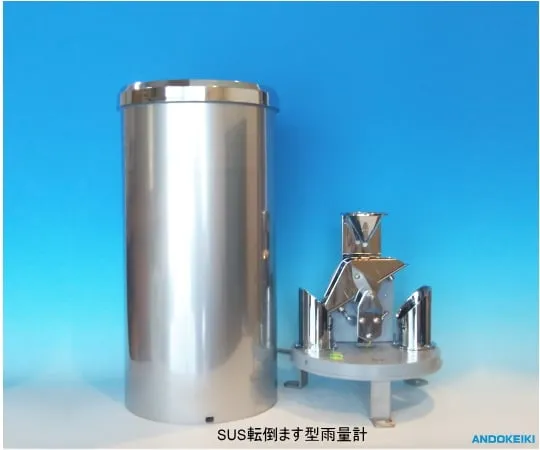

64-5230-08 SUS Overturning Type Rain Gauge with Data Logger Set AND-RLⅡ
Product Description
Product Model: 64-5230-08Product Brand: ANDO KEIKI Feat […]
Contact Us
Product Details
Product Model: 64-5230-08
Product Brand: ANDO KEIKI
Features
- SUS Falling Type Rain Gauge Data Logger Set General Product
- Falling Type Rain Gauge Sensory Part for Interval Measurement.
- It falls every certain amount (0.5 mm) of rainfall entering the water receiving port of 200 mm diameter, but the falling operation is detected by the reed switch, and the contact pulse signal is output.
- Stable observation and measurement is possible for a long time.
- Relatively easy to install.
- Body: Stainless Steel, Base: Aluminum Alloy, Leg: Metal
- Data Logger is a data logger that measures and records the number of pulses.
- The logger body is waterproof and can be ***d in various environments.
- It is battery-powered and can be installed anywhere.
- Recorded data can be transferred to a personal computer via the communication port TR-50U2 for graph display and data analysis.
Spec
- AND-RLII Set Contents: AND-R02SUS Overturn Type Rain Gauge (General Product), TR -55 i-P Small and Waterproof Data Logger, TR -50 U2 Data Collector
- AND-R02 (SUS Overturn Type Rain Gauge) Specification
- detection methods: fall expressions
- Water Receiving Part Diameter: Φ 200 mm
- (i) Amount of fallen rainfall: 0.5 mm (15.7 CC);
- Accuracy: within +/- 0.5 mm for rainfall not exceeding 20 mm and within +/- 3% for rainfall not less than 20 mm.
- Output signal: Voltage free make-contact signal 2-contact type
- Contact time: 0.1 ~ 0.15 seconds
- Insulation resistance: 500 VDC 500 MΩ or more
- Voltage: 1000 VAC 1 min
- Outer Cylinder Material: SUS 304
- Base Material: Aluminum Alloy Cast Material
- Coating color: Outer cylinder stainless steel, cap gold varnish, main unit gray (equivalent to Mansell 5GY6/1)
- External Dimensions: Approx. 210 mm x 450 mm (H)
- Weight: approx. 3.4 kg
- Attached cord: about 10 m
- TR -55 i-P (Compact, Waterproof Data Logger) Specification
- Measurement object: pulse 1 ch
- Measurement Range: Contact, Voltage
- Display: Measured value, battery life warning, etc.
- Recorded Data: 16000 Recorded Intervals: 15 records, 1 second to 60 minutes
- Record Mode: Endless/One-Time
- Communication: Optical communication, infrared communication alarm checking method: LCD screen of main unit, LED of main unit
- Power: Lithium battery
- Operating Environment: Temperature: -40 ~ 80 °C
- Size: H: 62 mm x W: 47 mm x D: 19 mm
- Waterproof: IP 64
- Battery life: Approx. 16 months
- Accessories: Input Module (PIC -3150), Lithium Battery LS 14250, Strap, Operation Manual (with warranty) Set
- TR -50 U2 (Data Collector) Specifications
- Communication: USB, optical communication
- power: USB bus power
- Operating environment: Temperature: -10 °C to 60 °C, Humidity: 90% rh or less (non-condensing), Data logger shall not be ***d in wet condition.
- Size: H: 80 mm x W: 56 mm x D: 16.5 mm
- Waterproof: None
- Accessories: USB Mini-B Communication Cable (US -15 C), Software (CD-ROM), Instruction Manual (with warranty) Set
