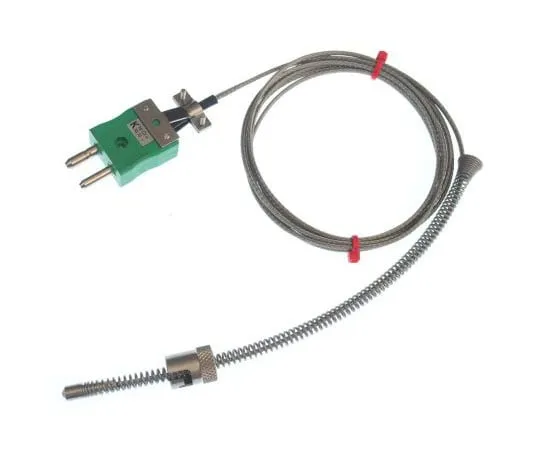

63-4684-57 RS PRO Type K Thermocouple 6mm Diameter, -60°C → +350°C 131-4762
Product Description
Product Model: 63-4684-57Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4684-57
Product Brand: RS PRO
Features
- Type K or J Adjustable Bayonet Thermocouples. Thermocouple with adjustable insertion depth 6.0 mm diameter tip 170 mm spring with adjustable fixing cap (11.5 mm I.D. single slot) Glassfibre insulated lead with stainless steel overbraid, 7/0.2mm Rated 350°C Fitted with cable clamps and standard thermocouple plug Good temperature resistance but not suitable where fluids are present Tolerance Class 2 to IEC-584 Insulation rating -60°C to 350°C (short periods up to 400°C) Colour code (cores ; jacket) to IEC-584-3 Type J or K available
Spec
- Quantity：1piece
- Thermocouple Type : K
- Probe Diameter : 6mm
- Maximum Temperature Sensed : +350°C
- Termination Type : Standard Connector
- Cable Length : 3m
- Standards Met : IEC
- CODE No.:131-4762
