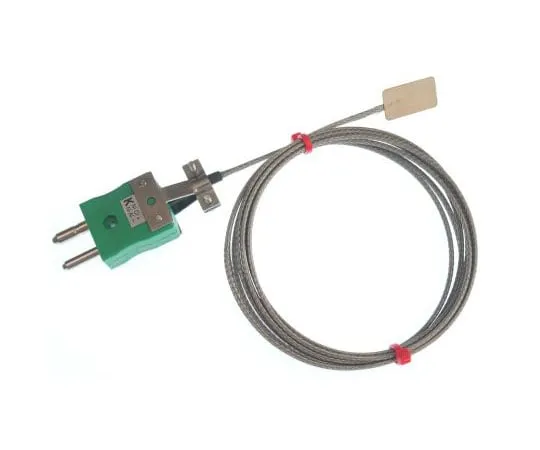

63-4684-45 RS PRO Type K Thermocouple, -60°C → +350°C 131-4746
Product Description
Product Model: 63-4684-45Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4684-45
Product Brand: RS PRO
Features
- Type K Leaf Thermocouples. Thermocouple mounted on a stainless-steel shim 25 mm x 13 mm shim Junction grounded at tip for fast response Rated 350°C 2 m glassfibre insulated lead with stainless steel overbraid, 7/0.2mm Fitted with cable clamps and standard thermocouple plug Good temperature resistance but not suitable where fluids are present Tolerance Class 2 to IEC-584 Insulation rating -60°C to 350°C (short periods up to 400°C) Colour code (cores ; jacket) to IEC-584-3
Spec
- Quantity：1piece
- Thermocouple Type : K
- Maximum Temperature Sensed : +350°C
- Termination Type : Standard Connector
- Cable Length : 2m
- Standards Met : IEC
- CODE No.:131-4746
