Features

• This product is a data logger storage meter with a set of tresability documents (4-piece set of calibration transcript, calibration certificate, system chart, and reference instrument transcript) attached.
• Calibration standard points are temperature/10,23,40°C.
• * The calibration document comes with the result of setting the main unit and one sensor for calibration. If you *** two sensors, there will be an additional charge.

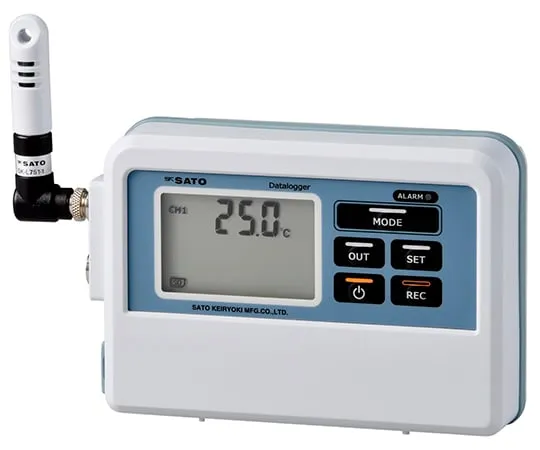

• A Temperature data logger that can store up to 16,000 measurements. The storage interval of 1 second is about 4 hours, and the storage interval of 90 minutes is about 2 years and 9 months. *How to calculate the total storage time from the storage interval and storage capacity: Storage capacity × Storage interval = Total storage time Example: 16000×5 seconds =22.2 hours
• You can select from 14 different storage intervals.
• The data storage interval can be set to 1 second, 2 seconds, 5 seconds, 10 seconds, 15 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes, 10 minutes, 15 minutes, 30 minutes, 60 minutes, or 90 minutes.
• You can reserve a memory.
• * If you reserve (set) the date and time for starting storage, storage will start automatically at the reserved date and time.
• Integrated sensor SK-L751-1 is included. (It is a sensor for air temperature measurement. *We cannot measure the liquid. )
• Up to two temperature sensors can be connected. (1 accessory)
• You can select one of the following four storage methods according to your usage.
• 1. One-Time Method Data is stored until the memory becomes full. Storage is automatically terminated when the number of stored data reaches 16000.
• 2. Endless mode (overwrite mode) When the memory becomes full, the data is overwritten from the beginning. This method is ideal for data collection during the last specified period.
• 3. Data number specification method You can specify a value of 1~16000 for the number of data items to be stored in advance. This method is ideal when you don't want to take unnecessary data.
• 4. Page method (memory division mode) Memory can be divided into four parts (four pages).
• A single device can be ***d for multiple devices by sequentially storing data from different locations and times. 1 page can store 4000 data.
• Analysis software included as standard
• * Standard graph processing, real-time monitoring, and other stored data can be fully utilized. It can also be saved in CSV format, so you can *** a commercially available spreadsheet.
• The key lock function prevents erroneous operations such as during storage.
• Upper and lower limits of the alarm value can be set (When the alarm is activated, the LED lights and the "Hi/Lo" indicator on the LCD flashes.)
• Can be ***d with either battery or AC adapter (sold separately).
• * The AC adaptor has priority when ***d in combination. When the AC adaptor stops supplying power due to a power failure, the battery switches automatically.
• Even if the power is turned off, the stored measurement data is stored in internal memory.
• The stored measurement data can be downloaded to a computer or copied to a microSD memory card (sold separately). (It can also be copied during storage.)
• You can set a six-digit ID number for the device. When multiple devices are ***d, it is easy to identify the devices.
• 【 Features of Analysis Software 】
• Up to 10 indicators can be connected simultaneously using a USB hub.
• Graph display, saving, printing, and analysis according to *** (Scale, scale, period selection, cumulative temperature analysis, etc.) are possible.
• If you save the data in CSV format, you can *** commercially available spreadsheet software to analyze the data.
• Real-time monitoring is possible. During real-time monitoring, alarm settings can be set, and alarm mail can be sent to a pre-registered email address.
• Supported OS: Windows10/8.1/8 (all 64bit/32bit Japanese version) * The latest service pack must be installed.
• Memory: 4GB or more (32bit) 8GB or more (64bit) Hard Disk: 4GB or more of free space required Other: USB port, CD-ROM drive Internet connection and email address required when using the email alert function
