Features

• The temperature logger SK-L400 T indicator is attached with a set of tressability documents ((1) calibration report (2) calibration certificate (3) system diagram (4) copy of reference instrument report). *Calibration/calibration point only for one channel (0°C. 100°C. 200°C. 300°C. 400°C)
• Up to four temperatures can be measured simultaneously.
• Monitor management is also possible while storing.
• Uses ASTM (formerly ANSI) miniature connectors for K thermocouples to connect various optional sensors.

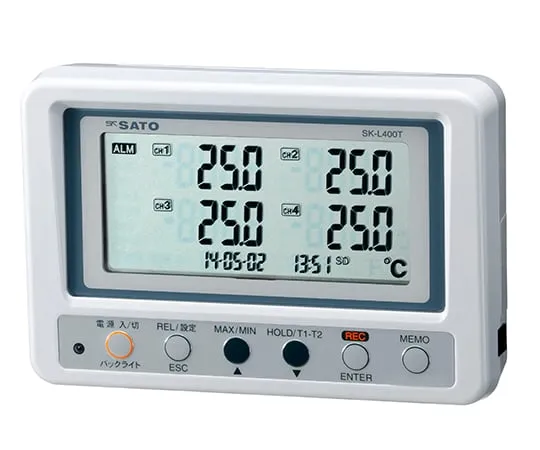

• The measured data is displayed on a large LCD. It has a backlight function which is convenient for reading in the dark.
• You can record the measurement on the SD card. (2,000 files can be recorded on a 4GB SD card * 1 file 30,000 data)
• You can set the upper and lower alarm indep***ently for each of the 4 channels. When the measured value exceeds the alarm setting value, the buzzer sound and LED lamp flash to inform you.
• Special analysis software (CD) is included as standard.
• It has various functions such as maximum value (MAX)/minimum value (MIN) display, relative value display (REL function), temperature difference display (T1-T2 function), and offset function.
• It is equipped with manual recording, reservation recording where you can set the recording start/stop time, and memo function where you can record the current measurement immediately. This function can be ***d to collect data for various scenes.
• An optional AC adapter is available for long-term recording and monitor ***.
• The main body can be mounted on a wall, on a tripod, or on a table.
• Note: This instrument can only be ***d as an indicator. A separate sensor is required.
• 【 Features of the analysis software 】
• You can read the recorded data from the SD card and display it graphically.
• The highest, lowest, and average values are automatically calculated for each channel.
• Calculates the cumulative temperature, which is ideal for analyzing cumulative temperature values.
• Marker settings make it easy to analyze points above a certain temperature value or within a certain temperature range.
• If you save the data in CSV format, you can *** commercially available spreadsheet software to analyze the data.
• [Operating environment of the analysis software]
• To *** the included analysis software, your computer must satisfy the following conditions.
• OS: Japanese Windows XP (SP3), Japanese Windows 7 (32 bit/64bit), Windows 8, 8.1 (32 bit/64bit), Windows 10 (32 bit/64bit) CPU: Normal operation of the above operating system
• Memory: Normal operation of the above operating system (Recomm***ed Windows XP: 512MB or greater; Windows 7, 8, 8.1, 10:2GB or greater)
• Hard disk space: 150MB or more free space, CD drive required
