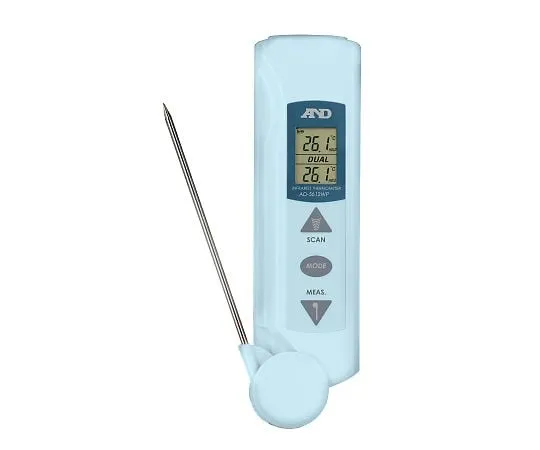

64-4055-06 Infrared Radiation Thermometer with Center Temperature Sensor (ISO) Calibration Included (test results report + Traceability System Diagram) AD5612WP-00A00
Product Description
Product Model: 64-4055-06Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 64-4055-06
Product Brand: A&D
Features
- [Application]
- For temperature control of food and cooking iron plates, water temperature measurement for raising seedlings and planting, abnormal temperature control of driving parts such as machines and motors. 【 Features 】
- One unit can measure temperature in two ways. Measured non-contact as a radiation thermometer, pierced with a pointed probe to measure the center temperature
- Drip-proof type equivalent to IP54
- The measurement range is -33 to +220°C for both the radiation thermometer and the center thermometer
- Convenient for grasping the temperature distribution of the object
- With maximum/minimum/lock measurement function (radiation thermometer)
- With auto power-off function
Spec
- Measurement range: -33 to + 220 °C (Radiation temperature sensor and center temperature sensor)
- resolution (minimum display): 0.1 °C (-9.9 to + 199.9 °C), otherwise 1 °C
- Response Time (90%): Approx. 1 sec. (radiation thermometer)/Approx. 10 sec. (center thermometer)
- Measurement accuracy (at 25 °C): ± 2% or ± 2 °C, whichever is greater (radiation thermometer)
- Accuracy of measurement (at 25 °C): ± 2 °C (-33 °C, to -5.1 °C), ± 1 °C (-5.0 °C, to 100.0 °C), ± 1% (100.1 °C, to 220 °C) (center thermometer)
- Emissivity Setting Range: 0.1 to Setting in increments of 0.01 up to 1.0 is possible.
- Distance vs measurement range: Measurement Distance (D): Measurement Area Diameter (S) = 2.5: 1
- Power Supply: CR 2450 lithium battery 1 piece
- Certificates: with General calibration certificate
- *The name and address of the person who requested the certificate will be blank.
- *Delivery will take about 2 weeks beca*** we will proofread it after the order is confirmed. (However, please **** that there will be additional days during the New Year's holiday.)
- *As this is a build-to-order product, we cannot accept returns after shipment.
