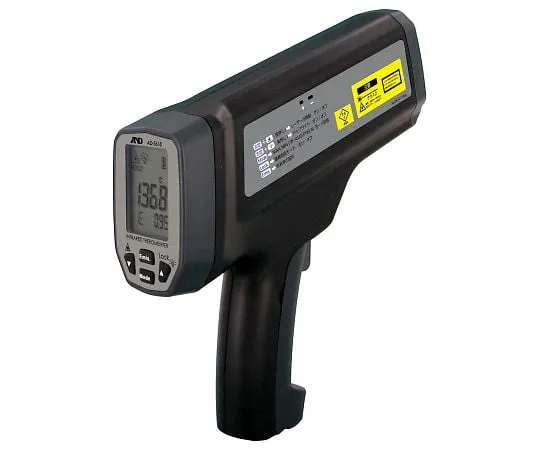

64-4055-04 Infrared Radiation Thermometer for High Temperature Measurement (ISO) with Calibration (test results report + Traceability System Diagram) AD5618-00A00
toner

64-4055-04 Infrared Radiation Thermometer for High Temperature Measurement (ISO) with Calibration (test results report + Traceability System Diagram) AD5618-00A00

model: 64-4055-04
brand: A&D
category: toner

Product Description

Product Model: 64-4055-04Product Brand: A&D Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 64-4055-04
Product Brand: A&D

Features

  • [Application]
  • Temperature measurement of iron making, casting, forging, incinerator, resin extrusion molding, temperature measurement of mold, metal melting, temperature control of quenching, annealing and tempering, temperature control of microwave and laser heating
  • [Features]
  • Distance: measurement area = maximum 100:1
  • with backlight and laser marker
  • for high temperature measurement. Measurement range 200°C to 1500°C (display range 100°C to 1800°C)
  • Emissivity setting can be changed, upper/lower temperature alarm function is included
  • Data memory function is included, up to 24 items can be recorded
  • K type thermocouple temperature sensor sold separately can be ***d (AD-1214/AD-1215/AD-1217/AD-1218/AD-1219)
  • Auto power off function is included

Spec

  • Measurement range: + 200 to + 1500 °C (radiation thermometer)
  • Measurement range thermocouple thermometer: -50 °C to + 1400 °C (display range)
  • Measurement accuracy radiation thermometer: ± 2% (+ 200 °C to 1500 °C)
  • Minimum display: 0.1 deg. C (-64 deg. C, to 999.9 deg. C), otherwise 1 deg. C.
  • Measurement accuracy Thermocouple thermometer: ± 1% or ± 1 °C, whichever is greater (0 to + 1400 °C)
  • Emissivity setting range: 0.10 to 0.01 increments (can be changed) up to 1.00
  • Laser marker: Class 2 (JIS C 6802) Laser wavelength: 635 to 660 nm, Output power: 1 mW or less
  • Power Supply: AA size type battery 2 pieces
  • Certificates: with General calibration certificate
  • *The name and address of the person who requested the certificate will be blank.
  • *Delivery will take about 2 weeks beca*** we will proofread it after the order is confirmed. (However, please **** that there will be additional days during the New Year's holiday.)
  • *As this is a build-to-order product, we cannot accept returns after shipment.
