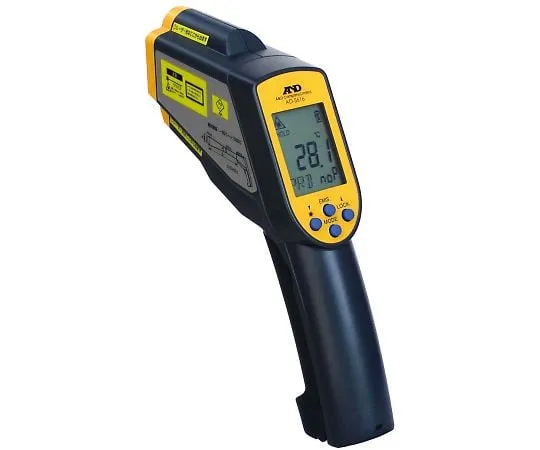

64-4055-03 Infrared Radiation Thermometer with Laser Marker (High Temperature Model) General (ISO) Calibrated (test results report + Traceability System Diagram) AD5616-00A00
Product Description
Product Model: 64-4055-03Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 64-4055-03
Product Brand: A&D
Features
- [Application]
- Temperature measurement of iron making, casting, forging, and incinerator, resin extrusion molding, temperature measurement of mold, metal melting, temperature control of quenching, annealing, and tempering, microwave, and laser heating
- [Features]
- Measurement up to 1500°C
- PS/C mark certified product
- With laser marker
- Backlight, with laser marker
- Emissivity setting can be changed
- With upper/lower temperature alarm function
- Maximum, minimum, average temperature, temperature difference can be displayed, with continuous measurement function
- K type thermocouple temperature sensor sold separately can be ***d (AD-1214/AD-1215/AD-1217/AD-1218/AD-1219)
- With auto power off function
Spec
- Measurement range: -60 °C to + 1500 °C (radiation thermometer)
- Measurement range thermocouple thermometer: -60 °C to + 1400 °C (display range)
- measurement accuracy
- radiation thermometer: ± 2% or ± 2 °C, whichever is greater (-33 °C to 1500 °C)
- Thermocouple thermometer: ± 1% or ± 1 °C, whichever is larger (thermocouple thermometer accuracy)
- Minimum display: 0.1 deg. C (-60 deg. C to + 999.9 deg. C), otherwise 1 deg. C
- Emissivity setting range: 0.10 to 0.01 increments (can be changed) up to 1.00
- Laser marker: Class 2 (JIS C 6802) Laser wavelength: 635 to 660 nm, Output power: 1 mW or less
- Power Supply: AAA size type battery 2 pieces
- Certificates: with General calibration certificate
- *The name and address of the person who requested the certificate will be blank.
- *Delivery will take about 2 weeks beca*** we will proofread it after the order is confirmed. (However, please **** that there will be additional days during the New Year's holiday.)
- *As this is a build-to-order product, we cannot accept returns after shipment.
