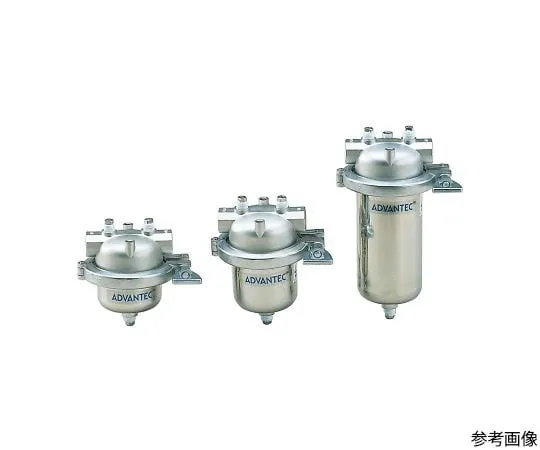

64-1203-78 Compact Cartridge Housing MTA-500T 43299010
Product Description
Product Model: 64-1203-78Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1203-78
Product Brand: ADVANTEC
Features
- The head and torso are sealed with a sanitary clamp, so it is easy to change the filter.
- Since the head is made of SCS14 and the body is made of SUS316/SUS316 L, there is almost no elution.
Spec
- Compact Cartridge Filter Name: M □-□- C 10 S
- IN, OUT Shape: 1/2 "PTF
- Dimensions ( outer diameter 108 mm x Height mm ) : 133
- maximum working pressure: 0.68 MPa (25 °C)
- Sterilization Method: EOG, Autoclave * 1, Inline Steam * 2
- material : Head/SCS 14 , 3S Clamp/SUS304 , Gasket/Silicone , Others/SUS316 , SUS316L
- Mass (kg): 1.1
- *1 121 °C for 30 minutes.
- *2 126 °C for 30 minutes.
- *Wrap the sealing tape around the piping taper screw.
