Spec

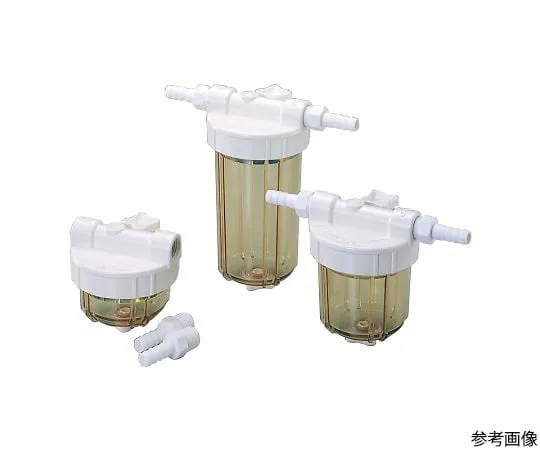

• Compact Cartridge Filter Name: M □-□- C 10 S
• IN, OUT Shape: Head/1/2 "PTF, Hose Adapter/outer diameter 13.5 mm/1/2" PTM
• Dimensions ( outer diameter 105 mm * 1 x Height mm ) : 100
• maximum working pressure: 0.49 MPa (25 °C)
• Maximum operating temperature: 90 °C
• material: O-Ring/Silicone, Other/Polysulfone, Polypropylene (Hose Adapter)
• Mass (g): 270
• Sterilization method: Autoclave # 2
• Accessories: Hose Adapter (outer diameter 13.5 mm/1/2 "PTM) x 2 pieces
• *1 ・・・ Excluding hose adapters.
• *2 ・・・ 121 °C for 30 minutes.
• *Can not be ***d for gas filtration.
• *Wrap the sealing tape around the piping taper screw.
• *This product ***s plastic, so it will deteriorate over time. The degree of deterioration varies dep***ing on the temperature, pressure, and chemical history of the operating conditions. If any abnormalities are found, replace the product with a new one or replace parts sold separately.
• *Do not connect metal piping directly to the head.
• *Do not tighten the vent/drain plug with a tool such as monkey wrench.
