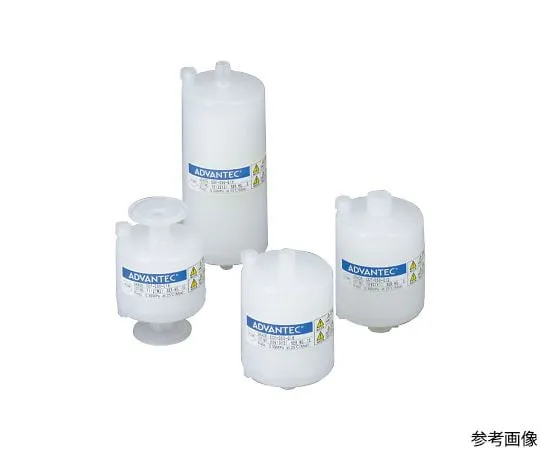

64-1198-02 Capsule Cartridge Filter CCFH-020-C1B 41152111
Product Description
Product Model: 64-1198-02Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1198-02
Product Brand: ADVANTEC
Features
- Autoclave sterilization is possible (in-line steam sterilization is not possible).
- All products have been tested for integrity and are highly reliable.
Spec
- Effective filtration area (cm2): 900
- pore size ( μm ) : 0.20
- maximum working pressure: 0.39 MPa (25 °C)
- Maximum operating temperature: 60 °C
- material: Filter/PTFE (hydrophilic PTFE for CCFH type), Support Media/Polypropylene (polyester for CCFH type), Others Polypropylene
- hydrophilicity
- Dimensions ( φ 77 mm x Total length mm ) * 4 : 102
- IN/OUT Shape * 4: 1/4 "NPTM
- *4 ・・・ Dimensions whose IN and OUT shapes are H-cord products
