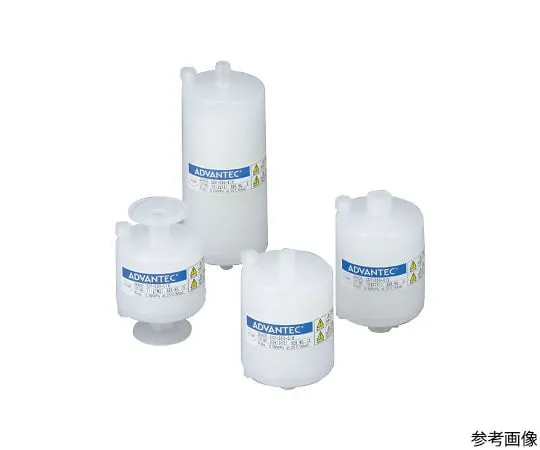

64-1197-95 Capsule Cartridge Filter CCF-G045-C1B 41148311
Product Description
Product Model: 64-1197-95Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1197-95
Product Brand: ADVANTEC
Features
- Autoclave sterilization is possible (in-line steam sterilization is not possible).
- All products have been tested for integrity and are highly reliable.
Spec
- Effective filtration area (cm2): 770
- pore size ( μm ) : 0.45
- maximum working pressure: 0.39 MPa (25 °C)
- Maximum operating temperature: 60 °C
- Sterilization method * 1: Autoclave * 2
- Bubble Point (Isopropyl Alcohol) (MPa): ≥ 8.6 x 10 ^ -2
- material: Filter/PTFE, Support Media/Polypropylene, Other/Polypropylene
- hydrophobicity
- Dimensions ( φ 77 mm x Total length mm ) * 3 : 102
- IN/OUT Shape: 1/4 "NPTM
- *1 ・・・ Repeated application of autoclave Sterilization may damage the filter. It is recomm***ed to perform a filter integrity test before ***.
- *2 ・・・ 121 °C for 30 minutes.
- *3 ・・・ The shape of IN and OUT is H cord product Dimensions.
