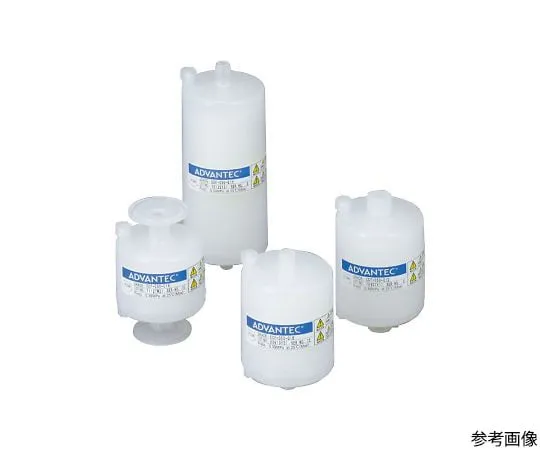

64-1197-71 Capsule Cartridge Filter CCF-010-C1B 41141111
Product Description
Product Model: 64-1197-71Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1197-71
Product Brand: ADVANTEC
Features
- Autoclave sterilization is possible (in-line steam sterilization is not possible).
- All products have been tested for integrity and are highly reliable.
Spec
- Effective filtration area (cm2): 570
- pore size ( μm ) : 0.10
- maximum working pressure: 0.39 MPa (25 °C)
- Maximum operating temperature: 60 °C
- Sterilization Method * 2: EOG, Autoclave * 3
- Bubble point (isopropyl alcohol) (MPa): ≥ 0.13
- material: Filter/PTFE, Support Media/Polypropylene, Other/Polypropylene
- hydrophobicity
- Dimensions ( φ 77 mm x Total length mm ) * 4 : 102
- IN/OUT Shape: 1/4 "NPTM
- *・・・ CCF-005, A 10 membrane filter ***s 2 pieces's different pore size membrane filter bonded together.
- *2 ・・・ Repeated autoclave sterilization may damage the filter. It is recomm***ed to perform a filter integrity test before ***.
- *3 ・・・ 121 °C 30 minutes
- *4 ・・・ Dimensions whose IN and OUT shapes are H-cord products
