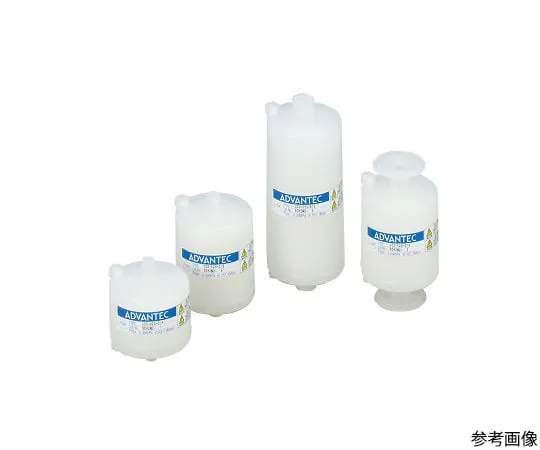

64-1197-52 Capsule Cartridge Filter CCS-020-C1BR(Cleaning) 41131115
Product Description
Product Model: 64-1197-52Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1197-52
Product Brand: ADVANTEC
Features
- Beca*** the filter has a high porosity and a two-layer structure with a different pore size, it provides a long filtration life with low resistance and high efficiency.
- Autoclave sterilization and in-line steam sterilization can be performed.
- Beca*** of the inert nature of the media, few components of the filtrate are adsorbed, making it suitable for filtering media and biochemical samples where adsorption is a problem.
- All products have been tested for integrity and are highly reliable.
Spec
- Effective filtration area (cm2): 450
- pore size ( μm ) : 0.20
- bacteria elimination performance : > LRV7 (P. diminuta)
- maximum working pressure: 0.39 MPa (25 °C)
- Maximum operating temperature: 60 °C
- Cleaned * 1
- Sterilization Method * 2: EOG, Autoclave * 3
- Bubble point (water) (MPa): ≥ 0.39
- material: Filter/Polyethersulfone, Other/Polypropylene
- Dimensions ( φ 77 mm x Total length mm ) * 4 : 102
- IN/OUT Shape: 1/4 "NPTM
- *1 ・・・ Cleaning is ultrapure running water of 10 L for Dimensions Code C, 20 L for Dimensions Code D, and 40 L for Dimensions Code E in the condition of a compact cartridge filter.
- *2 ・・・ Repeated autoclave sterilization may damage the filter. It is recomm***ed to perform a filter integrity test before ***.
- *3 ・・・ 121 °C 30 minutes
- *4 ・・・ Dimensions whose IN and OUT shapes are H-cord products
- RoHS3 (EU)2015/863 Certificates can be issued
