64-1197-44 Capsule Cartridge Filter CCG-045-C1B 41120111
Product Description
Product Model: 64-1197-44Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1197-44
Product Brand: ADVANTEC
Features

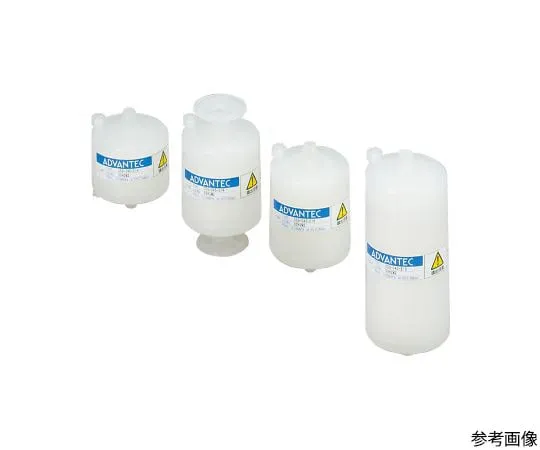

- This pleated compact/capsule cartridge filter ***s fine glass fibers to capture more particulate matter and provide a longer filtration life.
- When ***d as an air filter, clean air with high cleanliness can be obtained (When the MCG type is set to the stainless steel housing MTA type, MS type, or MSL type).
Spec
- Effective filtration area (cm2): 300
- Nominal pore size (μm): 0.45
- maximum working pressure: 0.29 MPa (25 °C)
- Maximum operating temperature: 60 °C
- material: Filter/Glass Fiber (Acrylic Plastic Binder Processing), Others are Polypropylene
- Dimensions ( φ 77 mm x Total length mm ) : 102
- IN/OUT Shape: 1/4 "NPTM
- *Dimensions whose IN and OUT shapes are H-cord products
