automaticdiluter

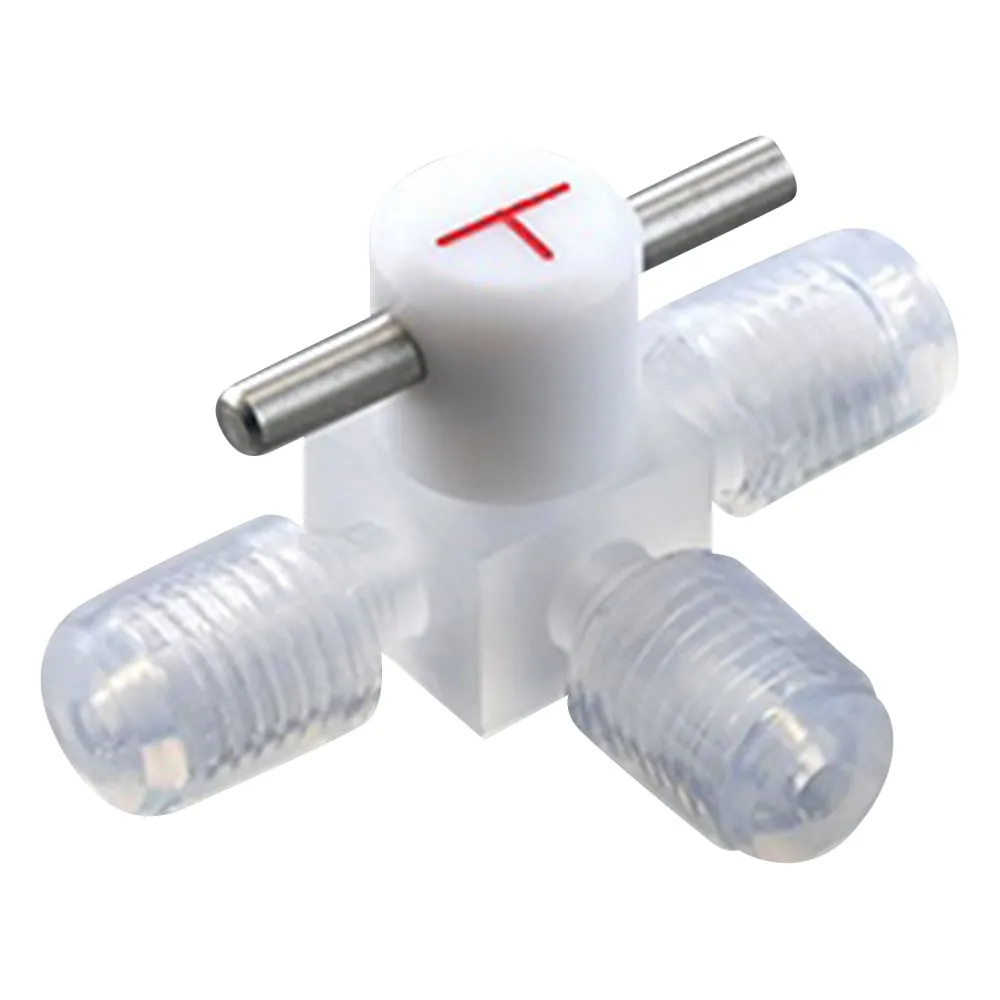

2-9976-01 Miniature Three-Way Cock (Tube Connection Type) B 1.6-3T B-1.6-3T
model:
2-9976-01
category:
automaticdiluter
Product Description
Product Model: 2-9976-01 Features All are made of fluor […]
Contact Us
Product Details
Product Model: 2-9976-01
Features
- All are made of fluoropolymer, so they have excellent chemical resistance.
- The body is compact and small, so it doesn't take up much space.
Spec
- materials of liquid contact part: CTFE and PTFE (Fluorine Plastic)
- Temperature range: 5 to 40 ° C
- Pressure: 0.25 MPa
- Flow path: T-shaped type
- Tube outer diameter (φ mm): 1.6
- Orifice diameter (φ mm): 1
- A: 11
- B: 11
- (C) 25
- (W) 38
- Tube connection type
- Model number: B-1.6-3 T
- RoHS3 (EU)2015/863 Certificates can be issued
