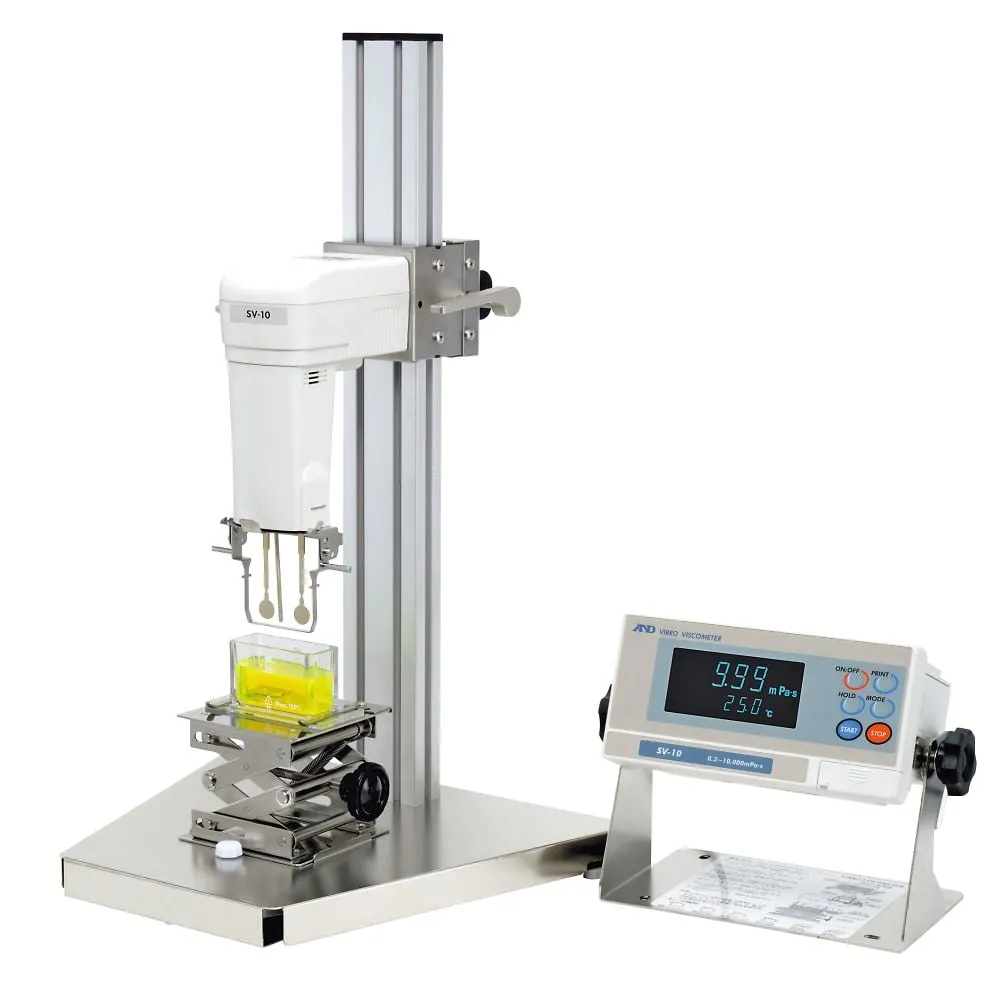

64-4053-27 Tuning fork vibration type viscometer SV series With General Calibration SV10-00A00
Product Description
Product Model: 64-4053-27Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 64-4053-27
Product Brand: A&D
Features
- [Applications]
- ・ Measurement of viscosity required for correction of particle size distribution • Viscosity control of resist solutions, inks, paints, and adhesives • Viscosity control of abrasives for semiconductors, ceramic materials, blood, etc. • Curing process of polymers, solder fluxes, proteins, etc. • Measurement of gelling point of non-ionic surfactants • Measurement of viscosity change due to temperature change of lubricating oils, engine oils, foods, and beverages • [Features]
- Tuning fork vibration method achieves 1% precision reproducibility. Viscosity calibration is possible using a viscosity standard solution.
- Wide measurement range.
- Selectable measurement range: A wide range of continuous measurements from low to high viscosity can be performed without changing the vibrator.
- Viscosity measurement in real time.
- Continuous measurement for a long time.
- Accurate and quick temperature detection.
- Real-time graphing of measurement data
- Stainless steel (SUS304) with gold-plated vibrator
- Stand set standard included
- RS-232C standard equipment (D-Sub25P knife)
Spec
- Measuring method: SV Type (Tuning Fork Vibration Type)/Fixed Frequency 30 Hz
- Display range: 0.3 to 10,000 mPa*s
- measurement accuracy
- Repeatability: 1% (standard deviation)
- Accuracy: ± 3% (1 to 1000 mPa*s)
- Sample volume: 35 ml, to 40 ml (when using a standard sample container)
- Sample temperature measuring section: 0 to 160 °C/0.1 °C indication
- External dimensions: Measurement Part/332 (W) x 314 (D) x 536 (H) mm, Display Part/238 (W) x 132 (D) x 170 (H) mm
- Power Supply: AC adaptor (included)
- Certificates: with General calibration certificate
- *The name and address of the person who requested the certificate will be blank.
- *Delivery will take about 2 weeks beca*** we will proofread it after the order is confirmed. (However, please **** that there will be additional days during the New Year's holiday.)
- *As this is a build-to-order product, we cannot accept returns after shipment.
