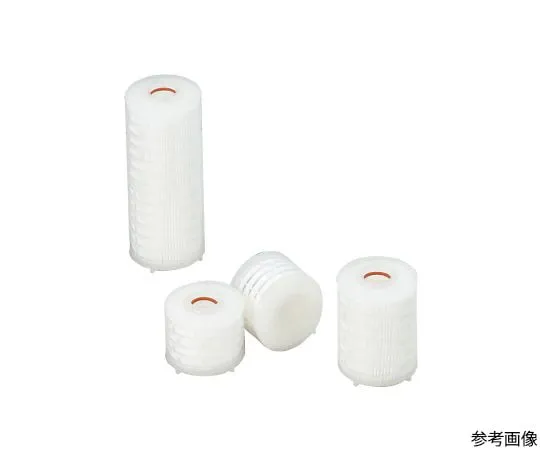

64-1197-03 Capsule Cartridge Filter CCP-LX-C1B 41101111
Product Description
Product Model: 64-1197-03Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1197-03
Product Brand: ADVANTEC
Features
- The filter is made of polypropylene filaments that are f***d together. Therefore, there is very little fiber detachment.
- Excellent chemical resistance and can be ***d in acids, alkalis and many organic solvents.
- By using a filter with a narrow fiber diameter and high porosity, the amount of particulate matter trapped is high, resulting in high particle trapping efficiency and long filtration life.
Spec
- Effective filtration area (cm2): 400
- Particulate supplementary performance * 1: particle size 0.8, μm, supplementary efficiency > 99%
- maximum working pressure: 0.39 MPa (25 °C)
- Maximum operating temperature: 60 °C
- Sterilization Method: EOG, Autoclave * 2
- material: Polypropylene
- Dimensions ( φ 77 mm x Total length mm ) * 3 : 102
- *1 ・・・ LX to FX: Latex bulb dispersion for each particle size filtered through 2 L/min (However, the filter ***d is D1 □)
- *2 ・・・ 121 °C 30 minutes
- *3 ・・・ Dimensions whose IN and OUT shapes are H-cord products
- IN/OUT Shape: 1/4 "NPTM
