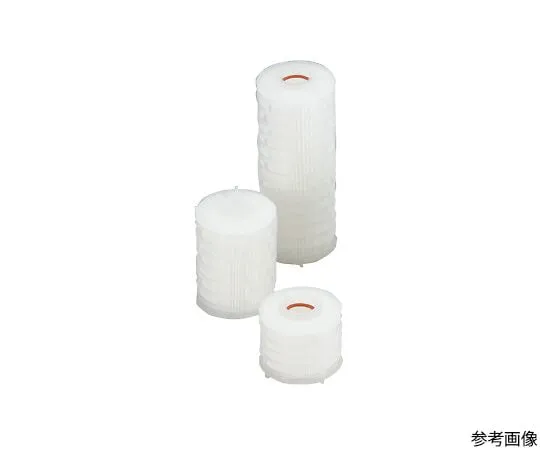

64-1194-11 Compact Cartridge Filter MCF-005-C10S 40140101
Product Description
Product Model: 64-1194-11Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1194-11
Product Brand: ADVANTEC
Features
- Autoclave sterilization and in-line steam sterilization are possible.
- All products have been tested for integrity and are highly reliable.
Spec
- Effective filtration area (cm2): 900
- pore size ( μm ) : 0.05
- Maximum working pressure: 0.39 MPa (25 °C)
- Maximum operating temperature: 80 °C
- Sterilization method * 2: EOG, autoclave * 3, inline steam * 4
- Bubble point (MPa) (isopropyl alcohol): ≥ 0.16
- material: Filter/PTFE (hydrophilic PTFE for MCFH type), Support Media/Polypropylene (polyester for MCFH type), O-Ring/Silicone (standard), Other/Polypropylene
- hydrophobicity
- Dimensions ( φ 62 mm x Total length mm ) : 48
- *The membrane filters of MCF-005 and A 10 are made from 2 pieces's different pore size membrane filters.
- *2 ・・・ Repeated autoclaving or inline steam Sterilization may damage the filter. It is recomm***ed to perform a filter integrity test before ***.
- *3 ・・・ 121 °C 30 minutes
- *4 ・・・ 126 °C for 30 minutes (Differential Pressure 0.019 MPa)
