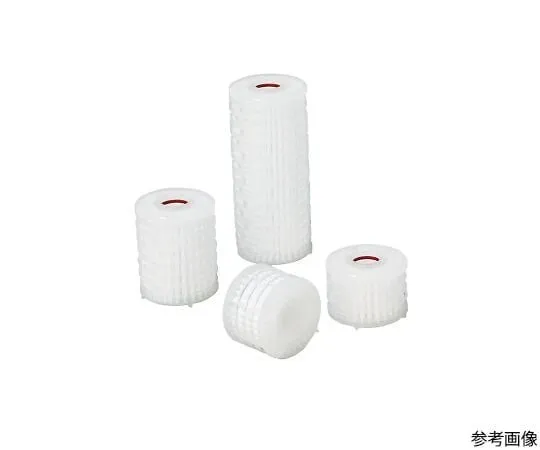

64-1193-71 Compact Cartridge Filter MCP-3-C10S 40111101
Product Description
Product Model: 64-1193-71Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1193-71
Product Brand: ADVANTEC
Features
- The filter is made of polypropylene filaments that are f***d together. Therefore, there is very little fiber detachment.
- Excellent chemical resistance and can be ***d in acids, alkalis and many organic solvents.
- By using a filter with a narrow fiber diameter and high porosity, the amount of particulate matter trapped is high, resulting in high particle trapping efficiency and long filtration life.
Spec
- Effective filtration area (cm2): 600
- Nominal pore size (μm): 3
- Maximum working pressure: 0.39 MPa (25 °C)
- Maximum operating temperature: 80 °C
- Sterilization Method: EOG, Autoclave * 2, Inline Steam * 3
- material: O-ring/silicone (standard), others polypropylene
- Dimensions ( φ 62 mm x Total length mm ) : 48
- *2 ・・・ 121 °C 30 minutes
- *3 ・・・ 126 °C for 30 minutes (Differential Pressure 0.019 MPa)
