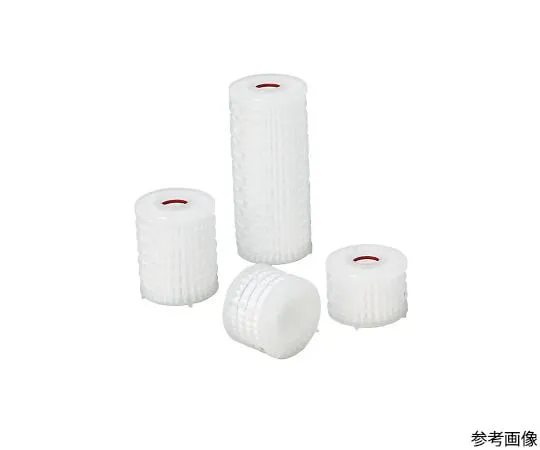

64-1193-55 Compact Cartridge Filter MCP-010AM-C10S 40106101
Product Description
Product Model: 64-1193-55Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1193-55
Product Brand: ADVANTEC
Features
- By reducing the pore size from the outer layer to the inner layer, amorphous foreign substances can be caught efficiently.
- Since it has a pleated structure with a large filtration area, the pressure loss is significantly reduced compared to the conventional depth type.
- In particular, it is expected that the filtration rate will increase in the filtration of viscous liquid, for which the filtration rate is difficult to obtain.
- The effective filtration area is reduced compared to the conventional PP pleated type, but the high particle capture efficiency is realized beca*** many filters are laminated.
Spec
- Effective filtration area (cm2): 190
- Nominal pore size (μm): 1
- Filter Configuration (Layer): 6
- Maximum working pressure: 0.39 MPa (25 °C)
- Maximum operating temperature: 80 °C
- material: O-ring/silicone (standard), others polypropylene
- Dimensions ( φ 62 mm x Total length mm ) : 48
