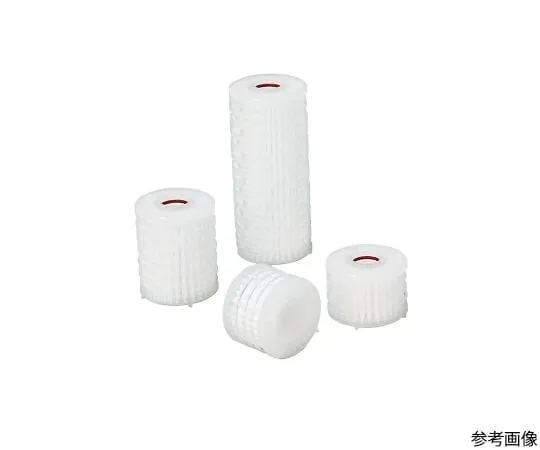

64-1193-43 Compact Cartridge Filter MCP-FX-C10S 40104101
Product Description
Product Model: 64-1193-43Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1193-43
Product Brand: ADVANTEC
Features
- The filter is made of polypropylene filaments that are f***d together. Therefore, there is very little fiber detachment.
- Excellent chemical resistance and can be ***d in acids, alkalis and many organic solvents.
- By using a filter with a narrow fiber diameter and high porosity, the amount of particulate matter trapped is high, resulting in high particle trapping efficiency and long filtration life.
Spec
- Effective filtration area (cm2): 550
- Particle Capture Performance: Particle * 1 Diameter (μm)/3, Capture Efficiency (%)/> 99
- Maximum working pressure: 0.39 MPa (25 °C)
- Maximum operating temperature: 80 °C
- Sterilization Method: EOG, Autoclave * 2, Inline Steam * 3
- material: O-ring/silicone (standard), others polypropylene
- Dimensions ( φ 62 mm x Total length mm ) : 48
- *1 ・・・ LX to FX: Latex bulb dispersion for each particle size filtered through 2 L/min (However, the filter ***d is D 10 S.)
- *2 ・・・ 121 °C 30 minutes
- *3 ・・・ 126 °C for 30 minutes (Differential Pressure 0.019 MPa)
