64-1189-42 Housing 1TWA-2S-RS 26980208
Product Description
Product Model: 64-1189-42Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1189-42
Product Brand: ADVANTEC
Features

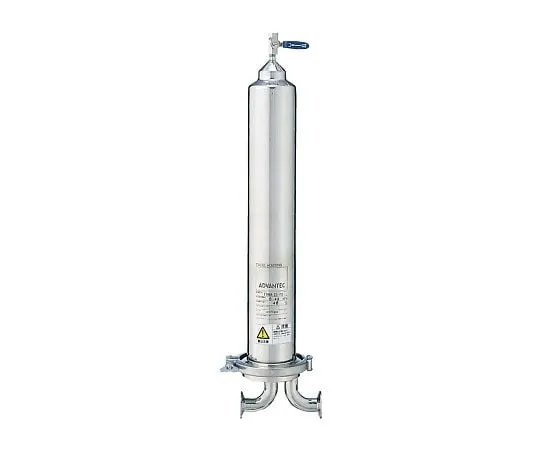

- Stainless steel sanitary housing for 1 piece with ferrule connection between IN and OUT.
- Composed of a body and a base, it can be assembled and cleaned easily.
- The body and base are sealed by 4S clamp.
- A sanitary ferrule is ***d to connect IN and OUT, and a housing can be installed between straight pipe sections.
Spec
- Number of Cartridges: 500 mm x 1 piece
- Applicable Cartridge Filter Shape Code: R, K (222 O-Ring SOE with Fins)
- IN and OUT shapes: 1S ferrule
- Dimensions ( mm ) : overall height/726 , full width/183
- maximum working pressure ( MPa ) : 0.49
- material : Body/SUS304 , Gasket/Silicone , Ball Valve ( Wetted Part )/SUS316
- Mass (kg): 5.1
