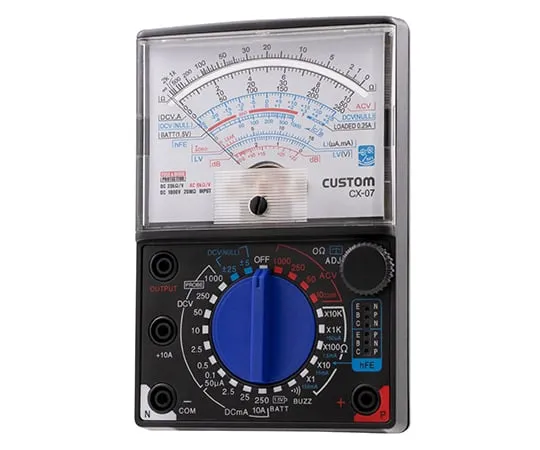

64-4047-52 Analog tester CX-07
Product Description
Product Model: 64-4047-52Product Brand: CUSTOM corporat […]
Contact Us
Product Details
Product Model: 64-4047-52
Product Brand: CUSTOM corporation
Features
- DC voltage/current, AC voltage, resistance measurement
- Multifunctional type capable of dB (decibel) measurement and transistor (hFE) measurement
- With battery check function and continuity check function
- Uses gold-plated test lead.
- For voltage and resistance measurement in factories and various work sites.
- For Professionals and Engineers
- Compatible Users: Tool Industry, Automotive Industry, Measurement Industry, Others
Spec
- AC Voltage (ACV): Range/10/50/250/1000V, Tolerance/Within ±4% FS, Within ±5% FS (1000 V), Input Impedance/9 kΩ/V
- DC Voltage (DCV): Range/0.1/0.5/2.5/10/50/250/1000V, Tolerance/Within ±3% FS, Within ±5% FS (1000 V), Input Impedance/20 kΩ/V
- DC Current (DCA): Range/50 μA/2.5 mA/25 mA/250 mA/10 A, Tolerance/Within ±3% FS/Within ±5% FS (10 A)
- Resistance Value (Ω): Range/2 kΩ (×1)/20 kΩ (×10)/200 kΩ (×100)/2 MΩ (×1k)/20 MΩ (×10k), Tolerance/Within ±3% of Scale Length
- Battery Check: Range/1.5 V
- Decibel (dB): Range/-10 to +22dB, Tolerance/±4% FS
- Collector Cutoff Current (Iceo)/LI Diode Forward Current (IF): Range/150 μA/1.5 mA/15 mA/150 mA, Tolerance/±5% of Scale Length
- LV diode forward voltage (VF): range/3~0 V, tolerance/±5% of scale length
- DC Amplification Factor (hFE): Range/0~1000, Tolerance/±3% of Scale Length
- Power: 2 AA batteries, 1 9V square battery
- Dimensions: Approx. W100 x H150 x D40mm
- Weight: about 295 g (including battery)
- Accessories: Test lead, Instruction Manual (with warranty)
