64-1189-35 Housing 1TWA-1S-FS 26980201
Product Description
Product Model: 64-1189-35Product Brand: ADVANTEC Featur […]
Contact Us
Product Details

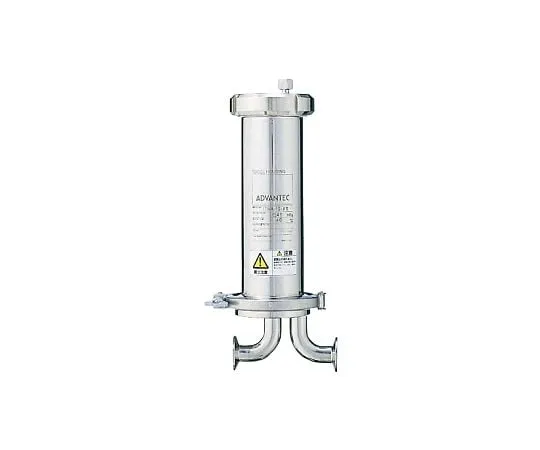

Product Model: 64-1189-35
Product Brand: ADVANTEC
Features
- Stainless steel sanitary housing for 1 piece with ferrule connection between IN and OUT.
- Composed of a body, base and top plate, it can be assembled and cleaned easily.
- The body and base are sealed with 4S clamps, and the body and top plate are sealed with 3 1/2 S round nuts.
- A sanitary ferrule is ***d to connect IN and OUT, and a housing can be installed between straight pipe sections.
Spec
- Number of Cartridges: 250 mm x 1 piece
- Applicable Cartridge Filter Shape Codes: C, F (Flat Gasket DOE) and TCW Type
- IN and OUT shapes: 1S ferrule
- Dimensions ( mm ) : overall height/412 , full width/183
- maximum working pressure ( MPa ) : 0.49
- material : Body/SUS304 , Gasket/Silicone , Ball Valve ( Wetted Part )/SUS316
- Mass (kg): 5.4
