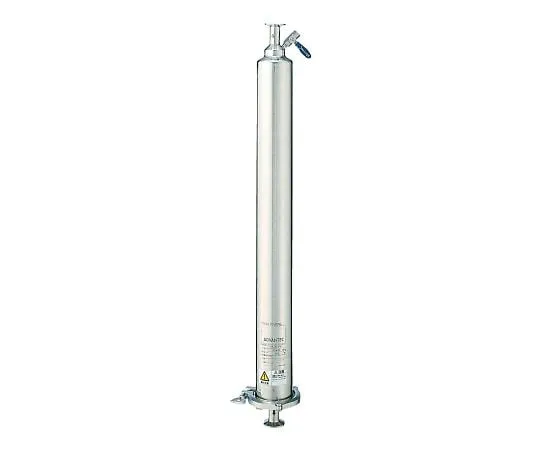

64-1189-34 Housing 1TVA-3S-PS 26980112
Product Description
Product Model: 64-1189-34Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1189-34
Product Brand: ADVANTEC
Features
- Stainless steel sanitary housing for 1 piece with ferrule connection of IN and OUT and seal part of body.
- Easy assembly and cleaning.
- By removing the 3 1/2S clamp on the torso, it is divided into two parts, the torso and the base, and the internal parts are almost removable.
- 1TVA type can be ***d as housing for vent filter.
Spec
- Number of Cartridges: 750 mm x 1 piece
- Applicable Cartridge Filter Shape Code: P, J (226 O-Ring SOE with Fins)
- IN and OUT shapes: 1S ferrule
- Dimensions ( mm ) : overall height/943 , full width/200
- maximum working pressure ( MPa ) : 0.49
- material : Body/SUS304 , Gasket/Silicone , Ball Valve ( Wetted Part )/SUS316
- Mass (kg): 6.4
