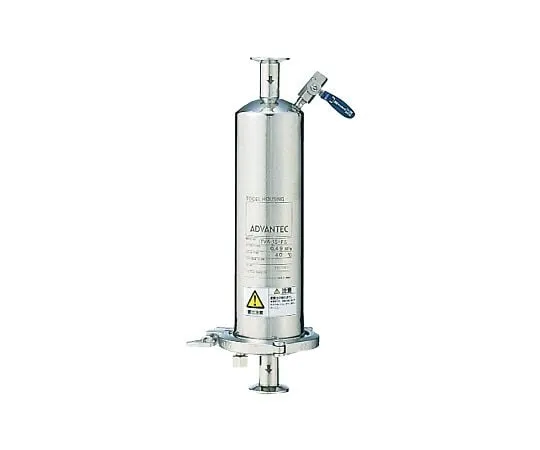

64-1189-23 Housing 1TVA-1S-FS 26980101
Product Description
Product Model: 64-1189-23Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1189-23
Product Brand: ADVANTEC
Features
- Stainless steel sanitary housing for 1 piece with ferrule connection of IN and OUT and seal part of body.
- Easy assembly and cleaning.
- By removing the 3 1/2S clamp on the torso, it is divided into two parts, the torso and the base, and the internal parts are almost removable.
- 1TVA type can be ***d as housing for vent filter.
Spec
- Number of Cartridges: 250 mm x 1 piece
- Applicable Cartridge Filter Shape Codes: C, F (Flat Gasket DOE) and TCW Type
- IN and OUT shapes: 1S ferrule
- Dimensions ( mm ) : overall height/408 , full width/200
- maximum working pressure ( MPa ) : 0.49
- material: Body/SUS304, Gasket/Silicone, Ball Valve (Wetted Part)/SUS316, Seal Gasket/PTFE
- Mass (kg): 3.5
