64-1189-06 Plastic Housing 1PA 26807000
Product Description
Product Model: 64-1189-06Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1189-06
Product Brand: ADVANTEC
Features

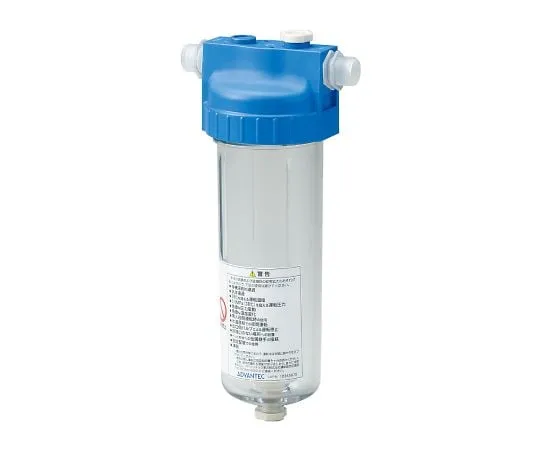

- A single-piece plastic housing consisting of a head and a body for water filtration.
- You can assemble easily just by tightening the body.
- Since the body is transparent, the situation during filtration operation can be grasped. *Autoclave sterilization is not possible.
Spec
- Number of Cartridges: 250 mm x 1 piece
- Applicable Cartridge Filter Shape Codes: C, F (Flat Gasket DOE) and TCW Type
- IN, OUT Shape: 3/4 "PF (3/4" PFM x 3/4 "with PTM Conversion Joint)
- Dimensions ( mm ) : overall height/345 , full width/170
- maximum working pressure (MPa): 0.5 (38 °C)
- Maximum operating temperature: 38 °C
- material: Head/Polypropylene (with Talc), Trunk/Acrylonitrile Styrene Plastic, Body/SUS304, O-Ring Seal Ring/Silicone (Connector O-Ring chisel NBR), Others/Polypropylene
- Mass (kg): 1.0
