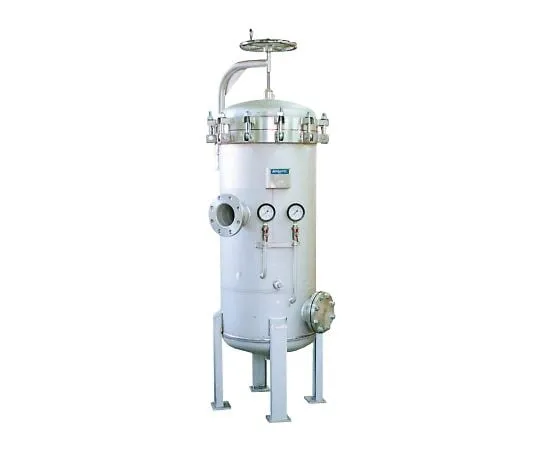

64-1188-83 Housing 27SF-3S 26762760
Product Description
Product Model: 64-1188-83Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1188-83
Product Brand: ADVANTEC
Features
- Fishing of the lid is done using the attached handle.
- A swing bolt is ***d for the body flange, and the seal of the filter is a spring seal system which is pressed by a pressure plate attached to the lid.
Spec
- Number of Cartridges: 750 mm x 27 pieces
- Applicable Cartridge Filter Shape Codes: C, F (Flat Gasket DOE) and TCW Type
- Shape of IN and OUT: JIS FF 10 K 80 A, 100 A, 150 A * Please select at the time of purchase.
- Dimensions ( mm ) : overall height/2,022 , full width/844
- maximum working pressure ( MPa ) : 0.98
- material: Body/SUS304, Pedestal: SUS316L, O-Ring/NBR, Pressure Gauge (Wetted Part)/SUS316, Handle/FC
- Mass (kg): 246
