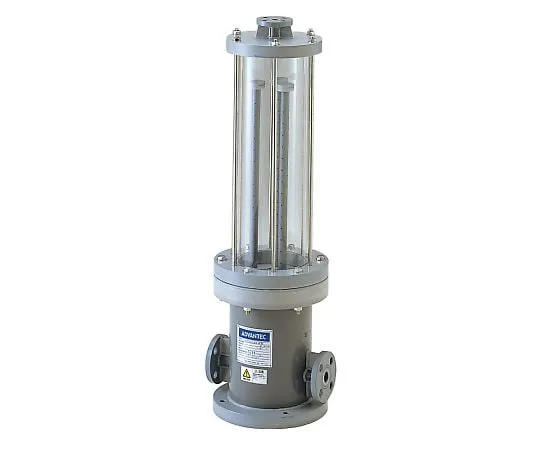

64-1188-69 Housing 3TZA-2P-FS 26716420
Product Description
Product Model: 64-1188-69Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1188-69
Product Brand: ADVANTEC
Features
- Easy to disassemble and clean.
- The body part is made of transparent acrylic resin, so you can grasp the condition of the filter during the filtration operation.
Spec
- Number of Cartridges: 500 mm x 3 pieces
- Applicable Cartridge Filter Shape Codes: C, F (Flat Gasket DOE) and TCW Type
- IN and OUT Shape: JIS FF 10 K 25 A
- Dimensions ( mm ) : overall height/1,010 , full width/344
- maximum working pressure (MPa): 0.29 (20 °C), 0.19 (40 °C)
- Maximum operating temperature (°C): 40
- material: Wetted Part/Acrylic Plastic (Body), PVC, Non-Wetted Part/SUS304, O-Ring/Silicone
- Mass (kg): 17.5
