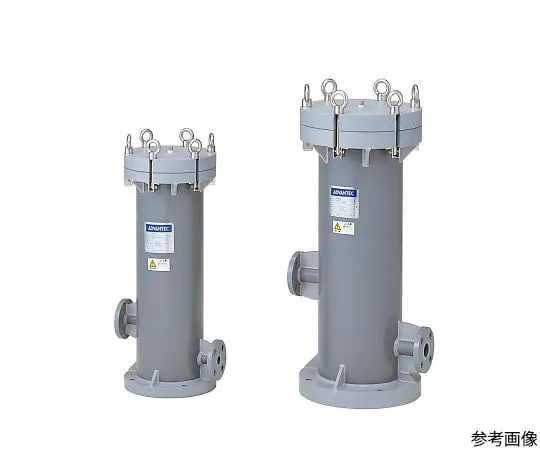

64-1188-62 Housing 4TXA-1P 26712410
Product Description
Product Model: 64-1188-62Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1188-62
Product Brand: ADVANTEC
Features
- Swinging bolts and eye nuts are ***d for the body flange, so you can easily change the filter.
- Stainless steel housings are ***d to filter seawater and other water with insufficient chemical resistance.
- Cartridge Filter Shape Codes C, F (Flat Gasket DOE) and TCW type filters are available.
Spec
- Number of Cartridges: 250 mm x 4 pieces
- Applicable Cartridge Filter Shape Codes: C, F (Flat Gasket DOE) and TCW Type
- IN and OUT Shape: JIS FF 10 K 25 A
- Dimensions ( mm ) : overall height/544 , full width/363
- maximum working pressure (MPa): 0.39 (40 °C), 0.19 (50 °C)
- Maximum operating temperature (°C): 50
- material: Wetted Part/PVC, Non-Wetted Part/SUS304, O-Ring/NBR
- Mass (kg): 17.5
