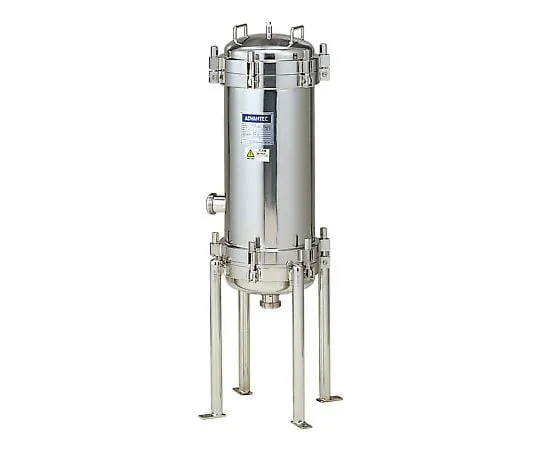

64-1188-42 Housing 7TS-2S-RS 26450730
Product Description
Product Model: 64-1188-42Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1188-42
Product Brand: ADVANTEC
Features
- Easily disassemble, clean, and assemble.
- For microfiltration of medium to large flow rates, 18 grades [For Filter Length 250 mm (4TS, 7TS only), 500 mm, 750 mm Type] are available as standard specifications from 4 to 42 bottles.
- For IN and OUT connections, standard specifications include sanitary screw unions (4 TS to 12 TS types) and JIS 10 K flanges (19 TS to 42 TS types). Large housings of 19 TS type and above are equipped with handles for opening and closing the lid as standard.
- TS type is a housing dedicated to cartridge filter shape codes R and K (222 O-Ring SOE with Fins).
Spec
- Number of Cartridges: 500 mm x 7 pieces
- Applicable Cartridge Filter Shape Code: R, K (222 O-Ring SOE with Fins)
- IN, OUT Shape: 2S IDF Screw Union (Screw Sleep)
- Dimensions ( mm ) : overall height/1,145 , full width/468
- maximum working pressure ( MPa ) : 0.49
- material: Body/SUS304, O-Ring/Silicone, Washer/PTFE
- Mass (kg): 48.0
Related product recommendations
You may also be interested in the following products
laboratoryinstruments

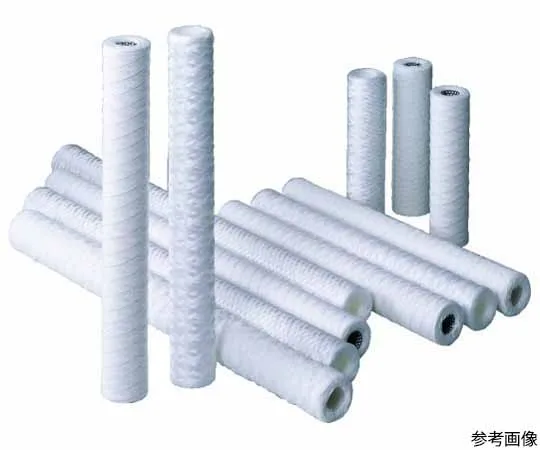

64-1020-20 ［Discontinued］Cartridge Filter TCW-1-EPS 25051101
