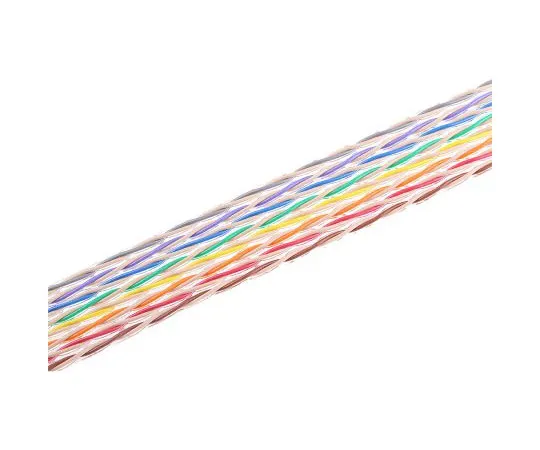

63-4682-63 3M 16 Way Twisted Ribbon Cable, 20.3 mm Width 1700-16
Product Description
Product Model: 63-4682-63Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-4682-63
Product Brand: 3M Company
Features
- UL Recognised. These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies. Twist & Flat 1.27m Pitch Ribbon Cable - Type 1700. Twisted pair flat cable. Wire gauge 28awg, 1.27mm pitch between conductors Reduced crosstalk in balanced drive applications Wires are colour coded for easy identification UL recognised style 50462
Spec
- Quantity：1roll(30m)
- Number of Ways : 16
- Width : 20.3 mm
- Pitch : 1.27mm
- Reel Length : 30m
- Voltage Rating : 300 V
- Capacitance : 52.2 pF/m
- Characteristic Impedance : 122 Ω
- Number of Pairs : 8
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +80°C
- Sheath Colour : Multicoloured
- CODE No.:126-4918
