Features

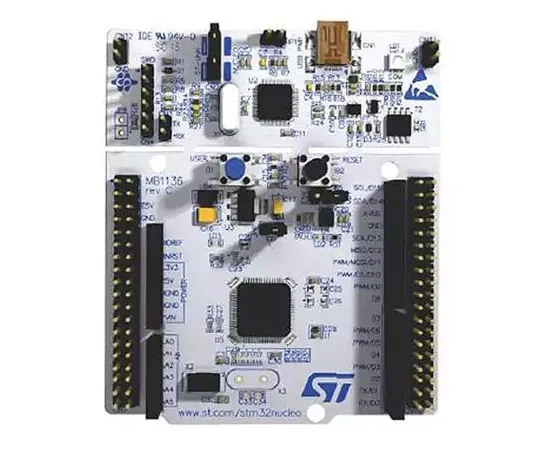

• NUCLEO-L452RE Nucleo-64 Development Board. This STM32 Nucleo-64 board provides an affordable and flexible way for ***rs to build prototypes with the ultra-low power STM32L452RET6 microcontroller. Arduino Uno v3 and ST morpho headers expand the functionality with a choice of Shields. The integrated ST-LINK/V2-1 debugger/programmer comes with the STM32 comprehensive software HAL library, software examples, as well as direct access to the ARM mbed on-line resources. Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based and ARM mbed. STM32L452RET6 80MHz Cortex-M4F core microcontroller with 256KB Flash memory, 64KB SRAM Ultra-low-power microcontroller with FlexPowerControl Adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from Flash memory Up to 21 capacitive sensing channels supporting touchkey, linear and rotary touch sensors Arduino Uno v3 connectivity support ST morpho extension pin headers for access to all GPIO ST-LINK/V2-1 debugger/programmer with SWD connector Serial communications: USART, SPI, QSPI, I²C, USB 2.0, SAI, CAN Flexible board power supply True random number generator CRC calculation unit AES-128/256-bit key encryption hardware accelerator Real-Time Clock and Cal***ar 96-bit unique ID 3 x LEDs: Power LED, USB communication, User LED User and Reset pushbuttons 32.768 KHz crystal oscillator ARM mbed Enabled (mbed.org)
