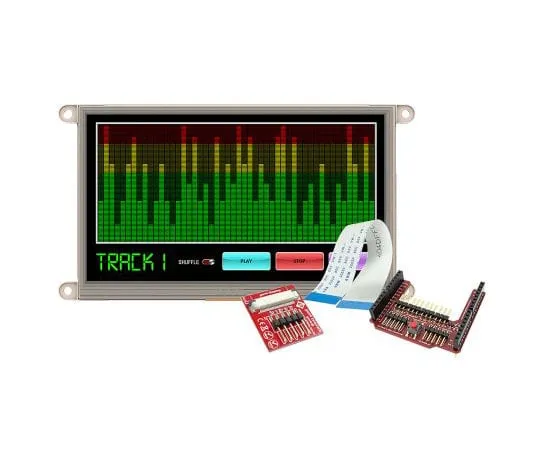

• Arduino board is not included. gen4-uLCD-70DT-AR Diablo16 Touch LCD Module with Arduino Shield. The gen4 series from 4D Systems are TFT LCD Display Modules that offer a compact and easy to integrate display solution. This 7.0 800 x 480 pixel variant features 4-wire resistive touch for applications requiring a human-machine interface. Also included is an Arduino adaptor shield, allowing the module to be quickly connected to an Arduino for programming. The design of the gen4 series makes it simple to integrate into a final product. The display module features a 30-pin ZIF socket to provide an easy connection to an application or motherboard, removing wiring headaches. If space is at a premium the connected board can sit flush on the back of the module as the display circuitry fits comfortably within the mounting base, maintain a slim profile. A micro-SD card connector provides optional multimedia storage and data logging capabilities. gen4 Display Modules are powered by the 4D Systems Diablo16 processor, an embedded controller that provides built-in graphics, text, image and animation capability. The Diablo16 is fully compatible with the 4D Systems Workshop4 IDE, giving programmers the flexibility of 4 differing development environments. Features. 7.0 800 x 480 display module RGB 65k true to like colours 4-wire resistive touch Compact – module dimensions 187.0 x 102.1 x 8.3 mm (including mounting tabs) 6 banks of 32KB Flash memory for ***r application code and data 32KB of ***r RAM 16 GPIO – including 4 configurable analogue outputs 3 x I2C channels 3 x SPI channels Up to 6 GPIO can be ***d as pin counters Up to 6 GPIO for PWM Up to 10 GPIO for pulse output Up to 14 GPIO can be configured for quadrature encoder inputs (2 channels) 30-pin FPC connection for signals, power, communications, GPIO and programming micro-SD card connector for multimedia storage and data logging Dedicated PWM audio pin Supports all Windows fonts 4.0 V to 5.5 V operation RoHS and REACH compliant CE Compliant. Kit Contents. 1 x 7.0 gen4-uLCD-70DT LCD display module 1 x gen4-IB interface board 1 x 150mm FFC Cable 1 x 4D Arduino adaptor shield
