Features

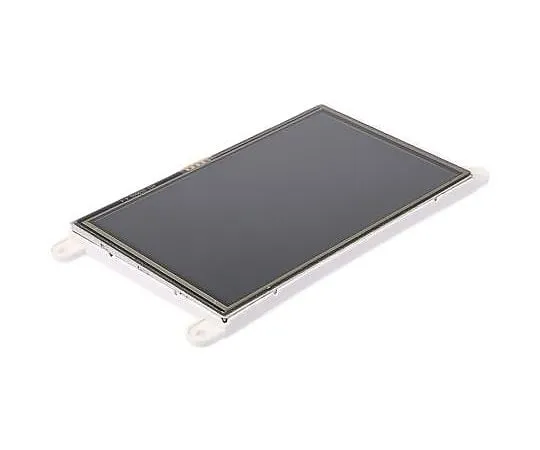

• gen4-uLCD-50DT Diablo16 Touch LCD Module. The gen4 series from 4D Systems are TFT LCD Display Modules that offer a compact and easy to integrate display solution. This 5.0 800 x 480 pixel variant features 4-wire resistive touch for applications requiring a human-machine interface. The design of the gen4 series makes it simple to integrate into a final product. The display module features a 30-pin ZIF socket to provide an easy connection to an application or motherboard, removing wiring headaches. If space is at a premium the connected board can sit flush on the back of the module as the display circuitry fits comfortably within the mounting base, maintain a slim profile. A micro-SD card connector provides optional multimedia storage and data logging capabilities. gen4 Display Modules are powered by the 4D Systems Diablo16 processor, an embedded controller that provides built-in graphics, text, image and animation capability. The Diablo16 is fully compatible with the 4D Systems Workshop4 IDE, giving programmers the flexibility of 4 differing development environments. Features. 5.0 800 x 480 display module RGB 65k true to like colours 4-wire resistive touch Compact – module dimensions 142.8 x 77.9 x 7.8 mm (including mounting tabs) 6 banks of 32KB Flash memory for ***r application code and data 32KB of ***r RAM 16 GPIO – including 4 configurable analogue outputs 3 x I2C channels 3 x SPI channels Up to 6 GPIO can be ***d as pin counters Up to 6 GPIO for PWM Up to 10 GPIO for pulse output Up to 14 GPIO can be configured for quadrature encoder inputs (2 channels) 30-pin FPC connection for signals, power, communications, GPIO and programming micro-SD card connector for multimedia storage and data logging Dedicated PWM audio pin Supports all Windows fonts 4.0 V to 5.5 V operation RoHS and REACH compliant CE Compliant. Kit Contents. 1 x 5.0 gen4-uLCD-50DT LCD display module 1 x gen4-IB interface board 1 x 150mm FFC Cable
