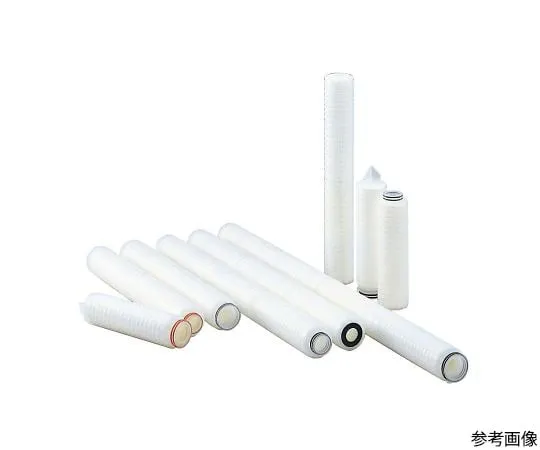

64-1187-70 Cartridge Filter TCPE-30-S1FE 21221111
Product Description
Product Model: 64-1187-70Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1187-70
Product Brand: ADVANTEC
Features
- It is formed from polypropylene filaments that are f***d together, and there is little fiber detachment or elution.
- All materials are polypropylene and can be ***d in acids, alkalis and many organic solvents.
- The filter has a thicker filter layer than the TCP type, so you can expect a depth effect.
Spec
- Nominal pore size (μm): 30
- Effective filtration area (cm 2/250 mm type): 3,700
- Maximum working pressure (MPa): 0.49 (25 °C)
- Maximum operating temperature (°C): 80
- Molded material: Polypropylene
- Dimensions ( mm ) : 250
- Cartridge Filter Shape: Flat Gasket DOE (upper and lower Part Open Type)
- Sealing Method: Edge Seal Type
- Gasket, O-ring material: Ethylene Propylene
